Parking Brake Warning Switch: Locations

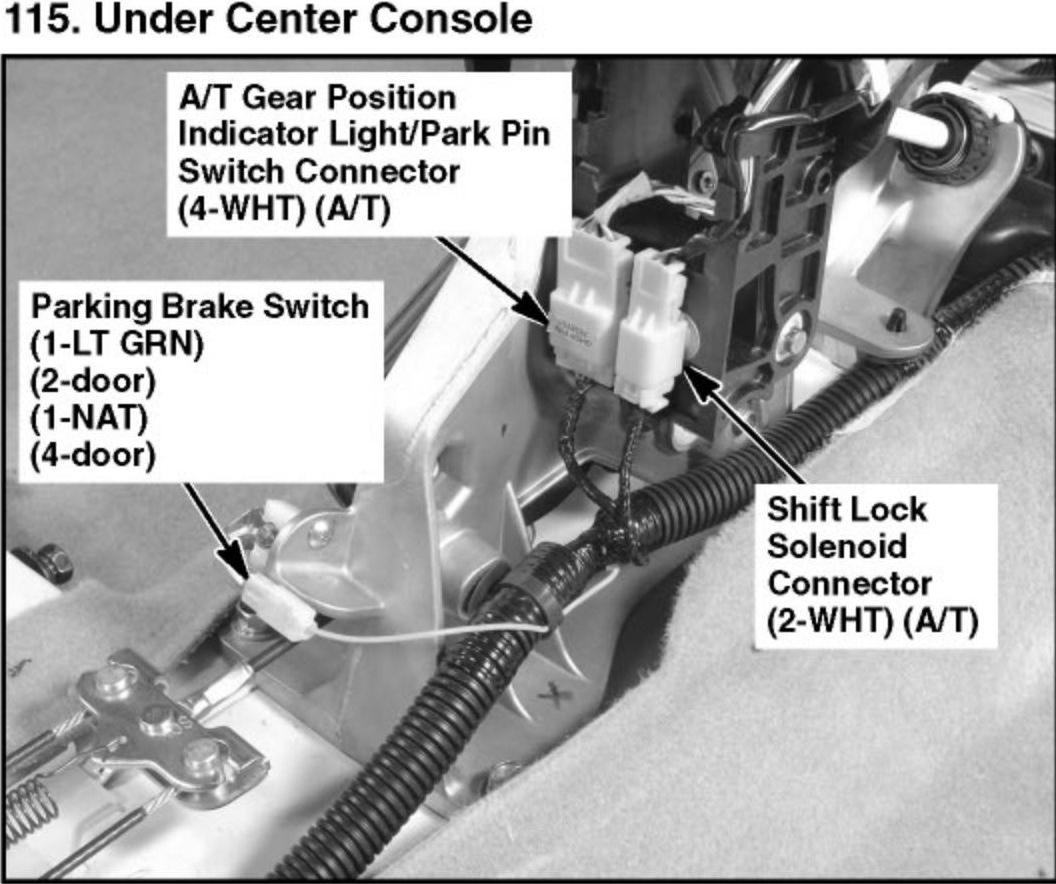

115. Under Center Console:

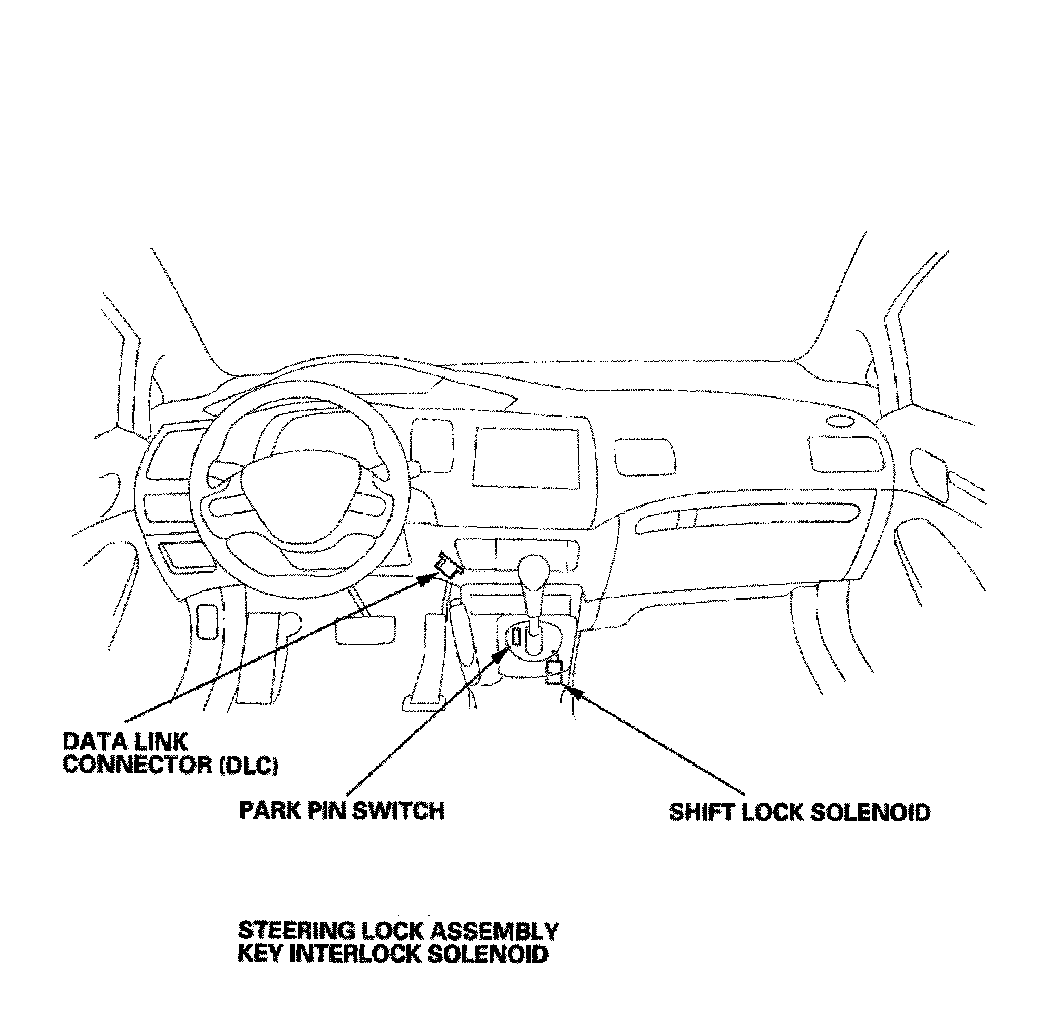

A/T Interlock System Component Location Index:
