Speedometer Head: Service and Repair
ReplacementSpeedometer
1. Remove the meter lower visor assembly.

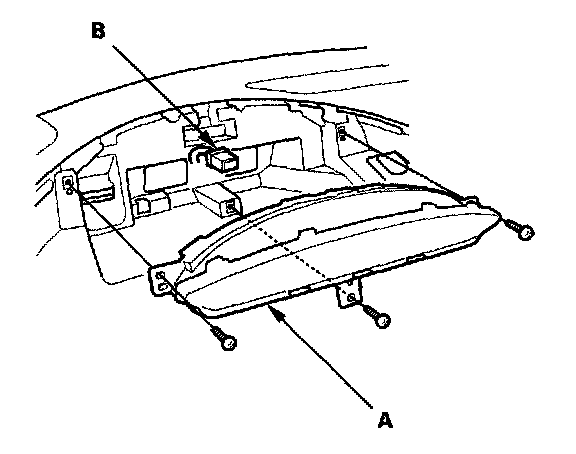

2. Remove the three screws from the gauge control module (speedo) (A).
3. Disconnect the 12P connector (B) from the gauge control module (speedo).
4. Install the gauge in the reverse order of removal.
