Body - Roof Molding Is Stained
06-080November 8, 2006
Applies To:
2006 Civic 4-door - From VIN1HGFA1...6L000001 thru 1HGFA1...6L114347
2006 Civic 4-door - From VIN 2HGFA1...6H500001 thru 2HGFA1...6H526480
2006 Civic 4-door - From VIN JHMFA1...6S000001 thru JHMFA1...6S014045
Roof Molding Is Stained
SYMPTOM
The roof molding looks white or grey, or it may have lost its gloss in some areas.
PROBABLE CAUSE
A commercially available cleaner has discolored the roof molding.
CORRECTIVE ACTION
Install new roof molding.
PARTS INFORMATION
Right-Side Roof Molding:
P/N 73158-SNA-013, H/C 8312142
Left-Side Roof Molding:
P/N 73168-SNA-013, H/C 8312134
Front Windshield Side Clip A:
(White, up to eight may be needed)
P/N 91570-SJD-003, H/C 8180135
Roof Molding Clip:
(White, up to six may be needed)
P/N 91572-SDA-A01, H/C 7151665
Windshield Clip A:
(Yellow, two may be needed)
P/N 73153-SNA-003, H/C 8063646
Windshield Clip B:
(Original clips are green; new clips are blue. Up to
six may be needed.)
P/N 731 54-SNA-003, H/C 8063661
Windshield Clip C:
(Brown, two may be needed)
P/N 73155-SNA-003, H/C 8063687
TOOL INFORMATION
KTC Trim Tool Set: T/N SOJATP2014

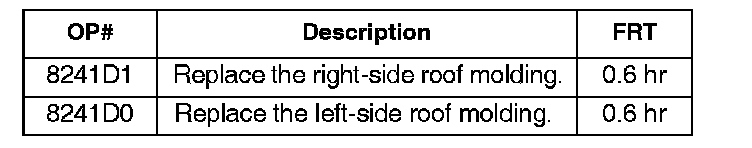

WARRANTY CLAIM INFORMATION
In warranty:
The normal warranty applies.
Failed Part: Right: P/N 73158-SNA-003
H/C 8063703
Left: P/N 73168-SNA-003
H/C 8063729
Defect Code: 00401
Symptom Code: 00901
Skill Level: Repair Technician
REPAIR PROCEDURE
NOTE:
^ Put on gloves to protect your hands.
^ Do not bend the new roof molding.
^ Use the appropriate tool from the KTC trim tool set to avoid damage when prying off the molding.
^ Do not use any metallic tools to remove the roof molding; you may chip or crack the windshield.
^ Take care to not scratch the body.
Replace the roof molding:
^ Refer to page 20-232 of the 2006-2007 Civic Service Manual, or
^ Online, enter keyword MOLD and select Roof Molding Replacement from the list.
