Engine - Buzzing Noise at 1,300 to 1,700 RPM

06-059

July 20, 2007

Applies To:
See VEHICLES AFFECTED

Buzzing From the Engine at Low RPM
(Supersedes 06-059, dated November 10, 2006)

Updated information is shown with black bars and asterisks.

SYMPTOM

There is buzzing from the engine under light throttle (1,300 to 1,700 rpm) or at idle while in gear.

PROBABLE CAUSE

The drive belt layout allows drive belt tensioner noise to be heard in the passenger compartment.

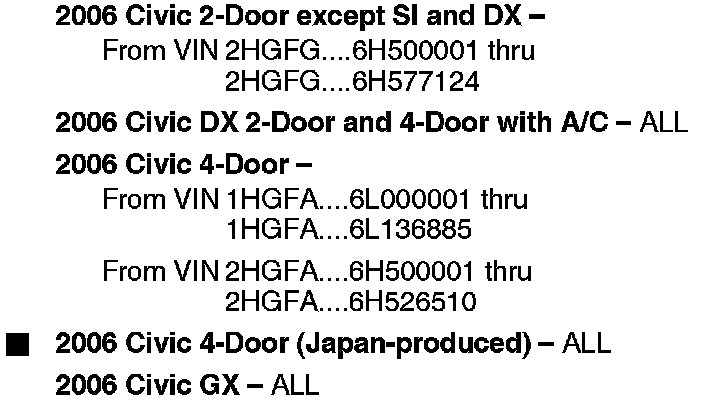

VEHICLES AFFECTED

CORRECTIVE ACTION

Install a longer, re-routed drive belt.

PARTS INFORMATION

Belt Kit: P/N 04301-RNA-307, H/C 8503310

WARRANTY CLAIM INFORMATION

In warranty: The normal warranty applies.

Operation Number: 118130

Flat Rate Time: 0.3 hour

Failed Part: P/N 56992-RNA-A01
H/C 8051104

Defect Code: 00301

Symptom Code: 04501

Template ID: 06-059A

Skill Level: Repair Technician

Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Parts and Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

REPAIR PROCEDURE

1. Remove the original drive belt:

^ Refer to page 4-40 of the 2006-2007 Civic Service Manual, or

^ Online, enter keywords DRIVE BELT, and select Drive Belt Removal/Installation (R18A1 and R18A4 Engine) from the list.

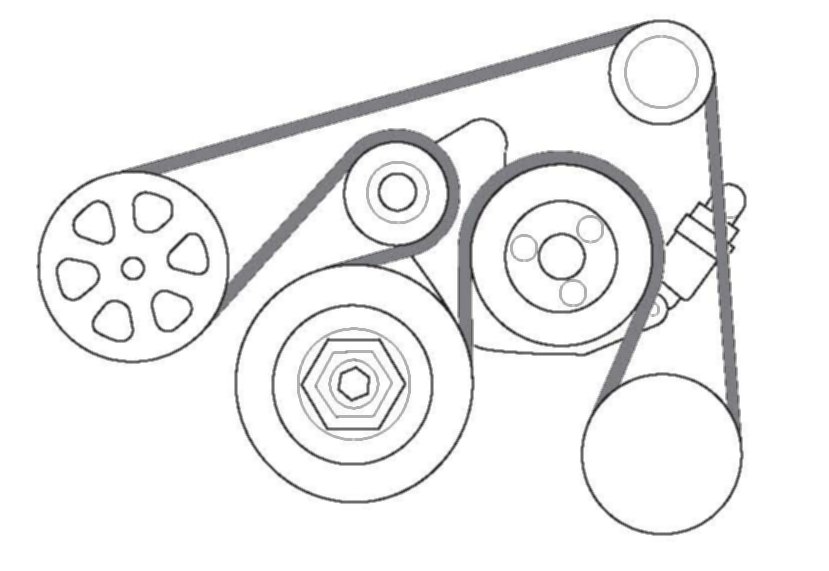

2. Install the new drive belt, and route it as shown.





NOTE:

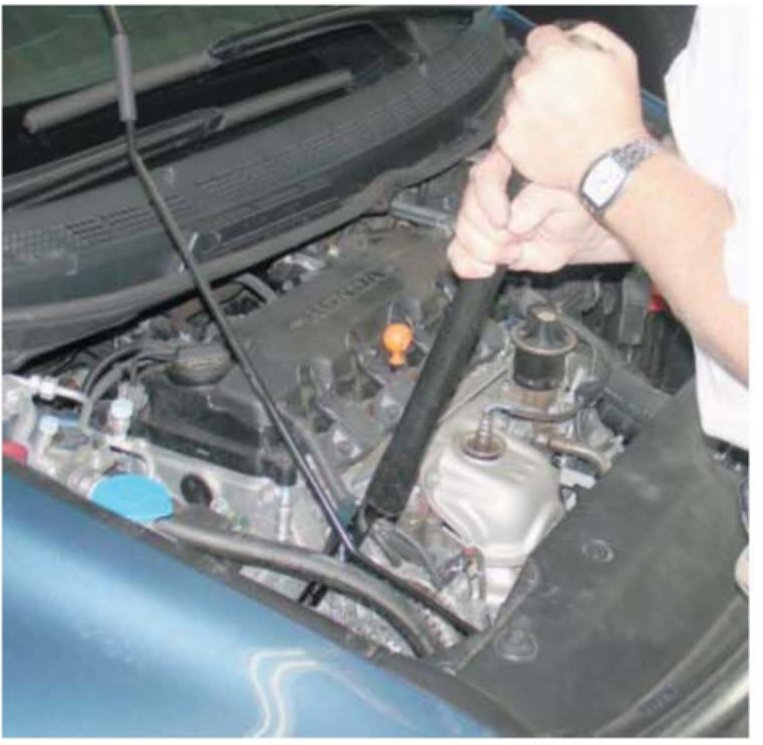

Use an appropriate tool for added leverage when setting the wrench on the auto-tensioner. The tensioner is hydraulic and should be moved slowly to relieve pressure on the belt. Applying excessive force to the tensioner can cause breakage.
