Home >> Honda >> 2007 >> Accord V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> EGR Valve Position Sensor

EGR Valve Position Sensor

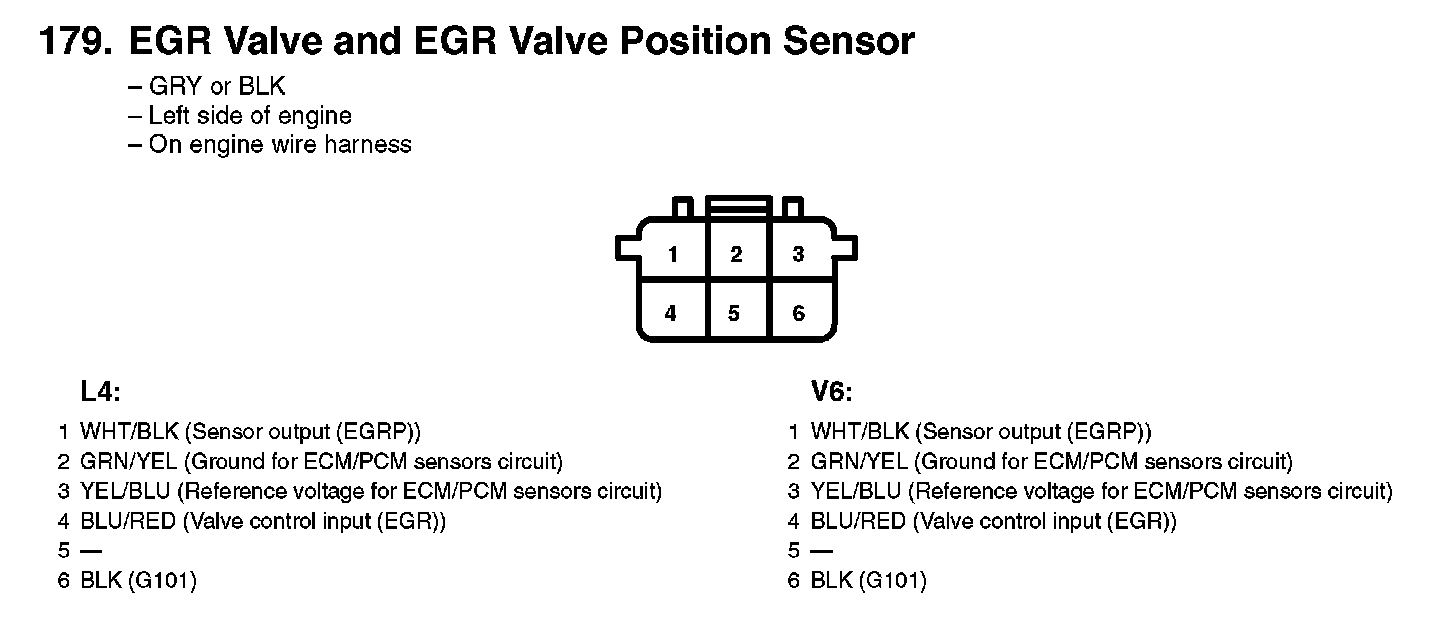

179. EGR Valve And EGR Valve Position Sensor:
