Oxygen Sensor
Oxygen Sensor
149. HO2S (B2, S2), Front Secondary (V6):

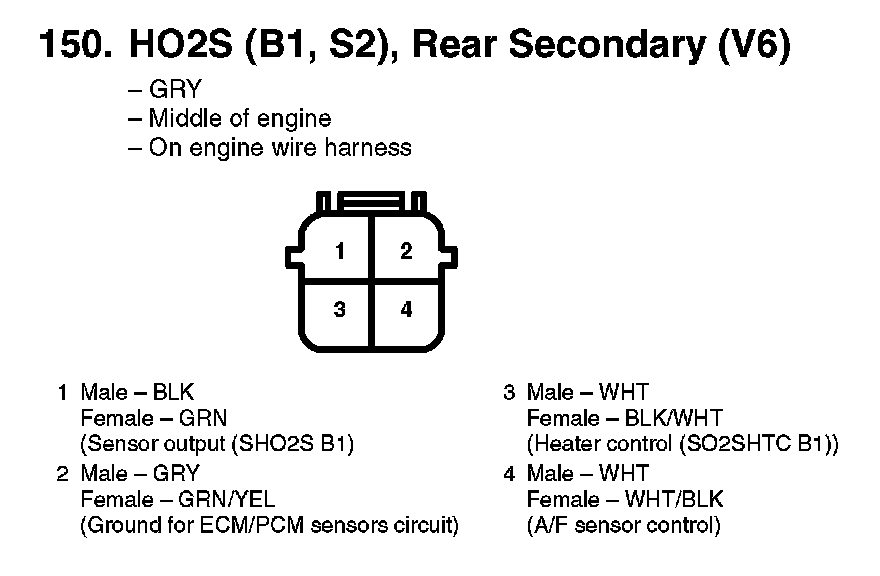

150. HO2S (B1, S2), Rear Secondary (V6):
200. A/F Sensor (B1, S1), Rear (V6):

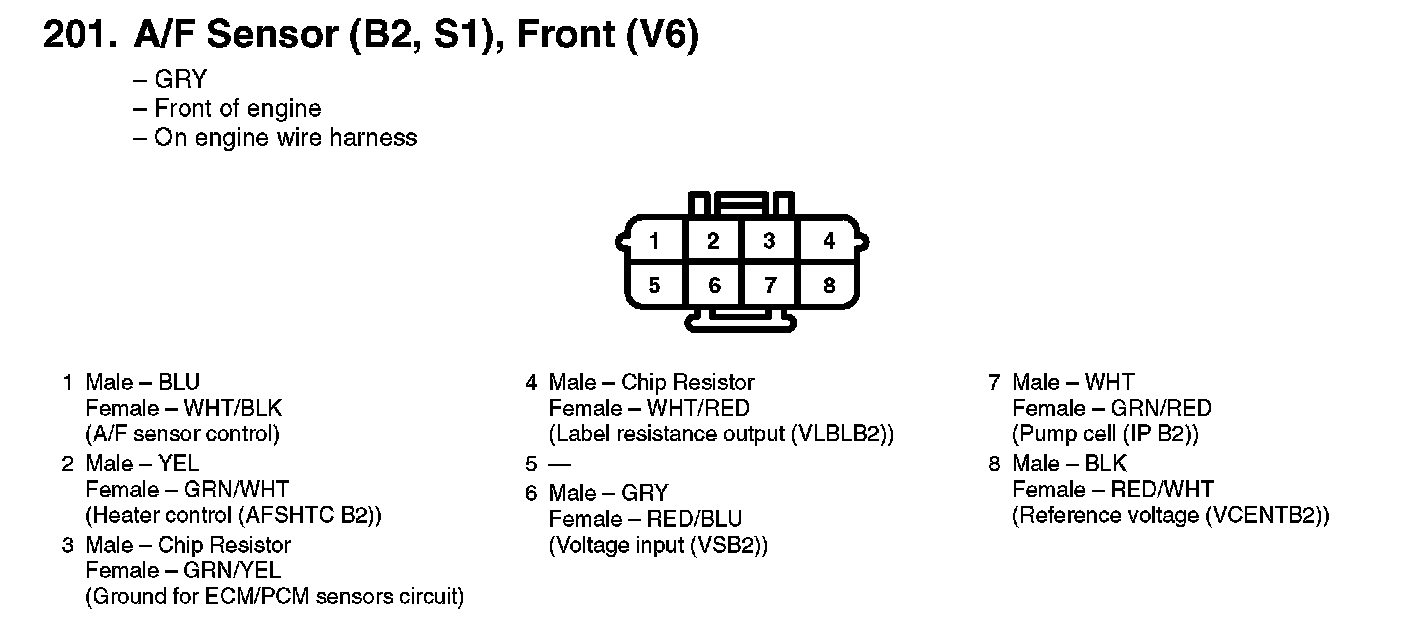

201. A/F Sensor (B2, S1), Front (V6):
