Power Door Lock Actuator
Power Door Lock Actuator

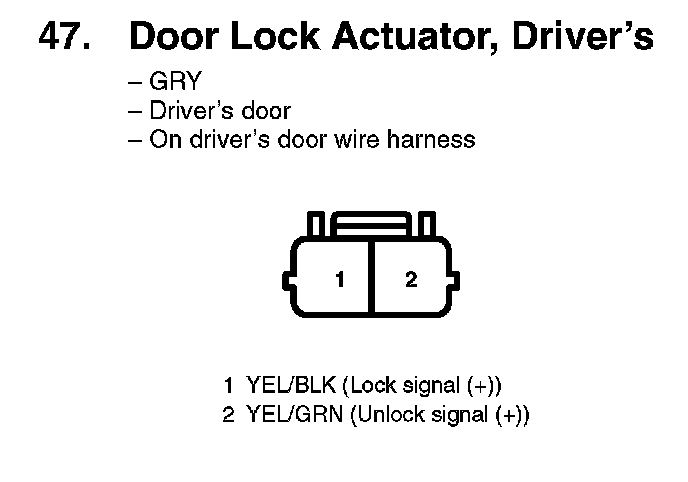

47. Door Lock Actuator, Driver's:

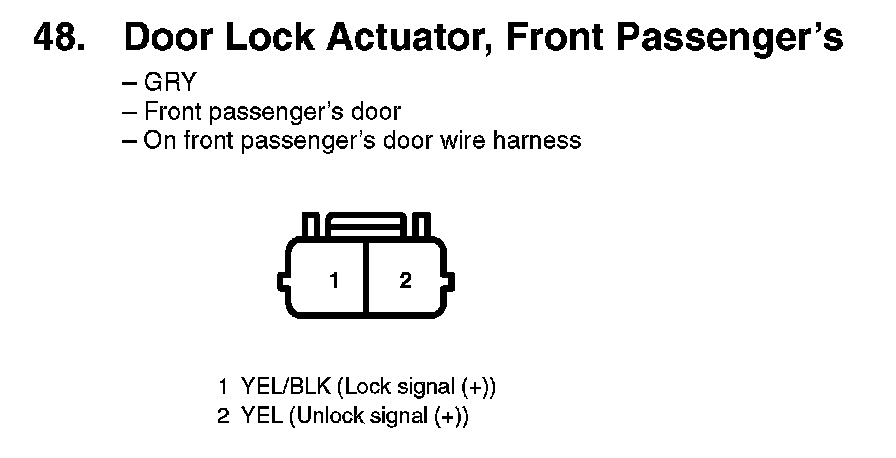

48. Door Lock Actuator, Front Passenger's:
49. Door Lock Actuator, Left Rear (4-door):

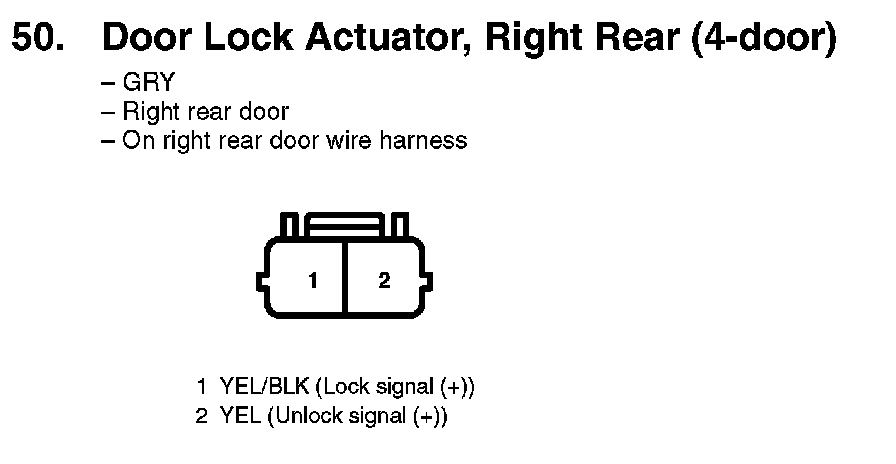

50. Door Lock Actuator, Right Rear (4-door):
