Seat Temperature Switch
Seat Temperature Switch

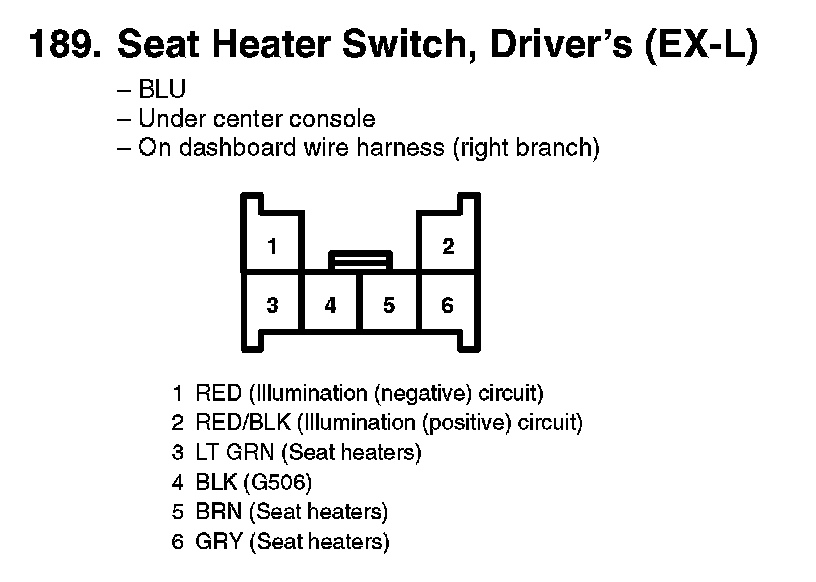

189. Seat Heater Switch, Driver's (EX-L):
190. Seat Heater Switch, Front Passenger's (EX-L):
