Shift Solenoid, A/T
Shift Solenoid, A/T

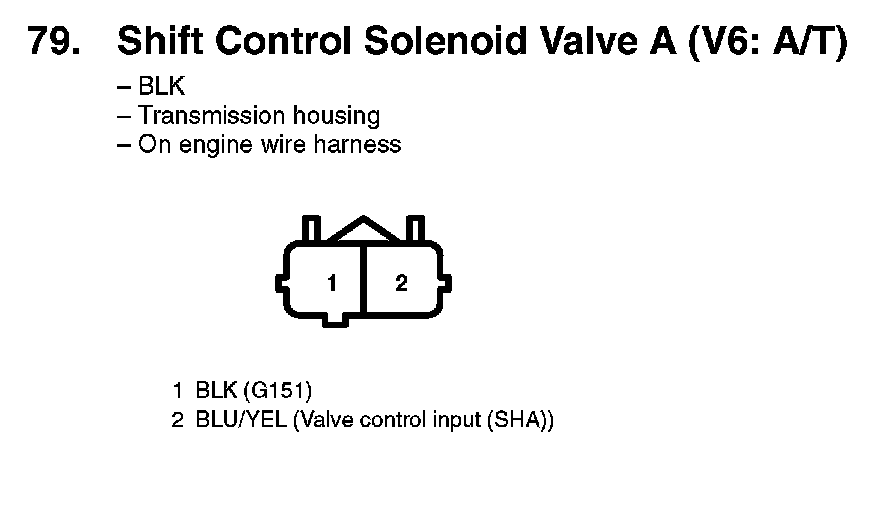

79. Shift Control Solenoid Valve A (V6: A/T):

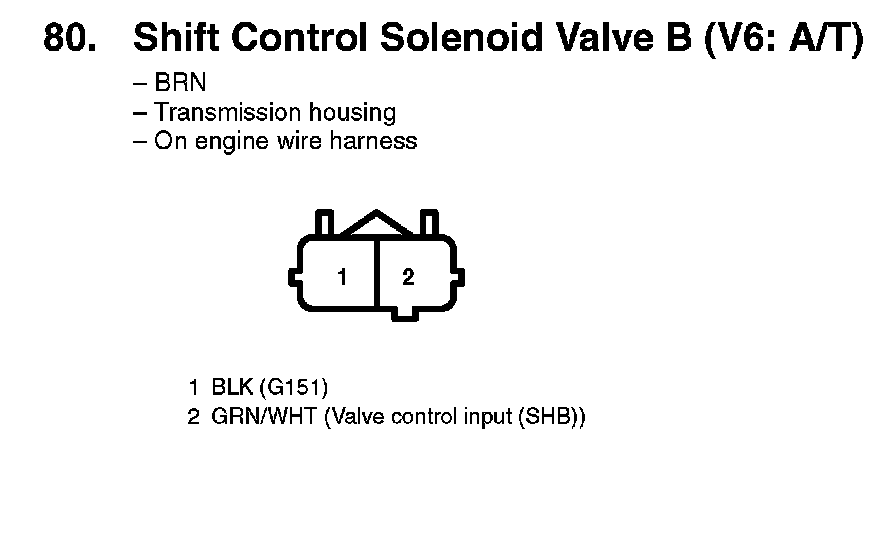

80. Shift Control Solenoid Valve B (V6: A/T):
81. Shift Control Solenoid Valve C (V6: A/T):
