Home >> Honda >> 2007 >> Accord V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Steering Angle Sensor

Steering Angle Sensor

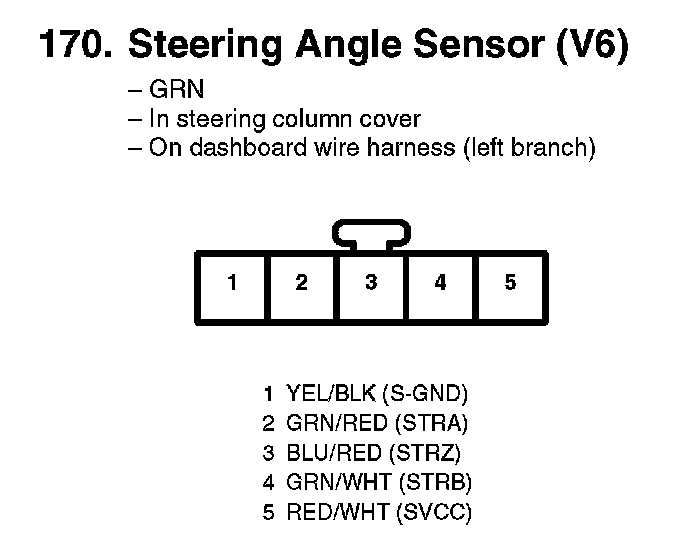

170. Steering Angle Sensor (V6):
