Sunroof / Moonroof Relay
Sunroof / Moonroof Relay

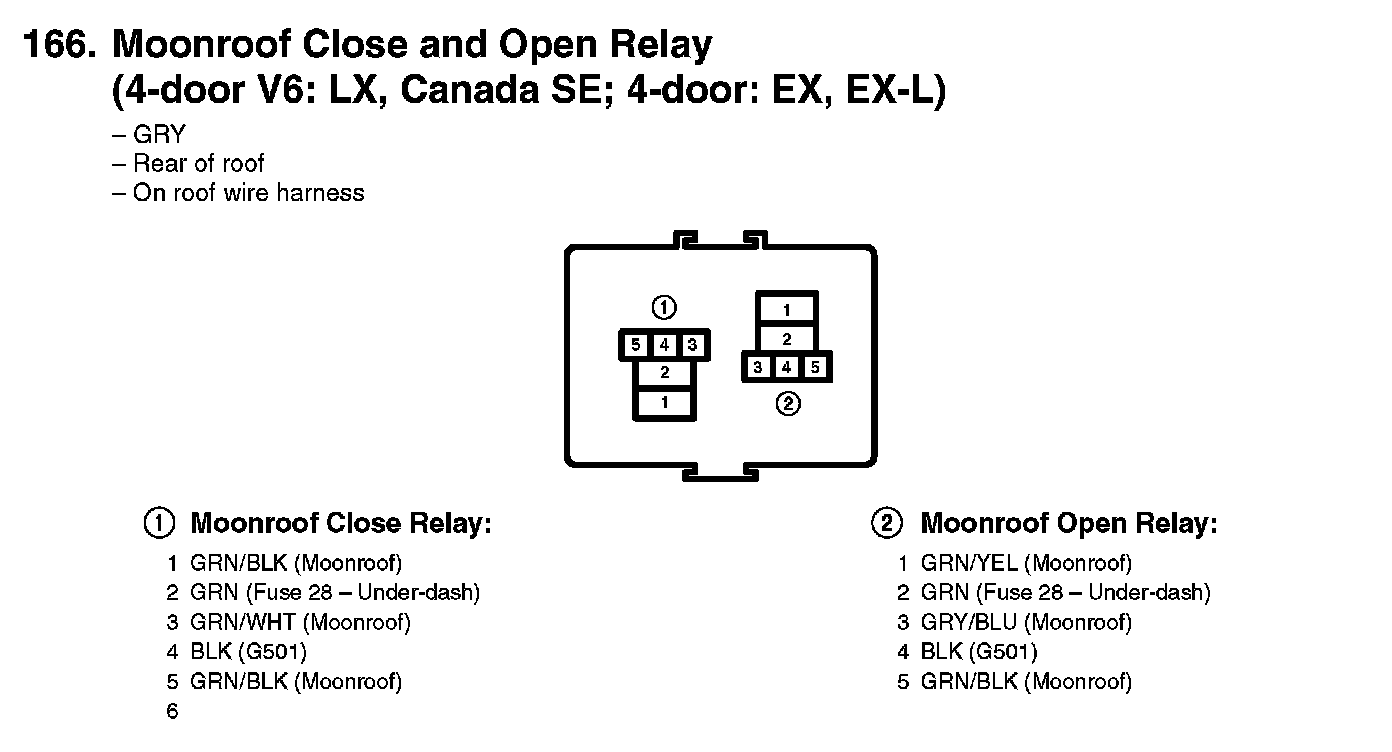

166. Moonroof Close And Open Relay (4-door V6: LX, Canada SE; 4-door: EX, EX-L):
