Home >> Honda >> 2007 >> Accord V6-3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Torque Converter Clutch Solenoid, A/T

Torque Converter Clutch Solenoid, A/T

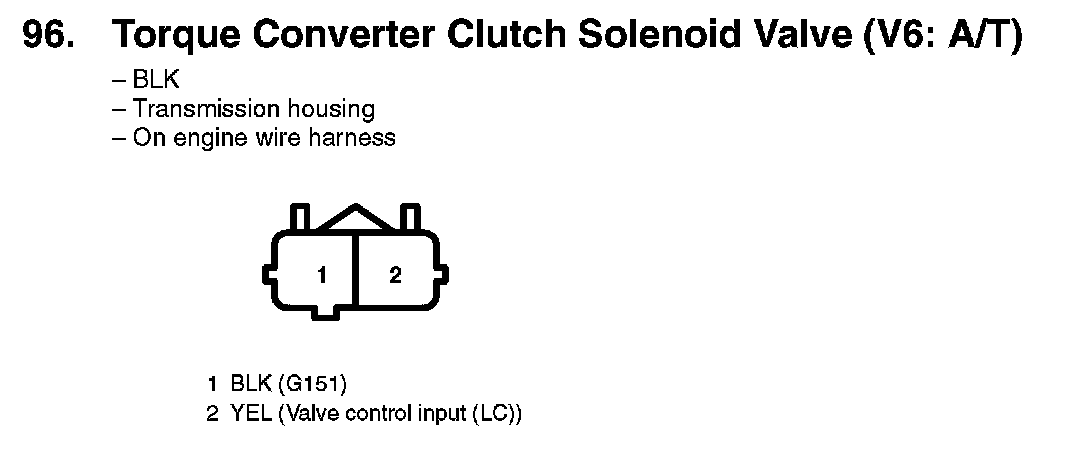

96. Torque Converter Clutch Solenoid Valve (V6: A/T):
