Vanity Lamp
Vanity Lamp

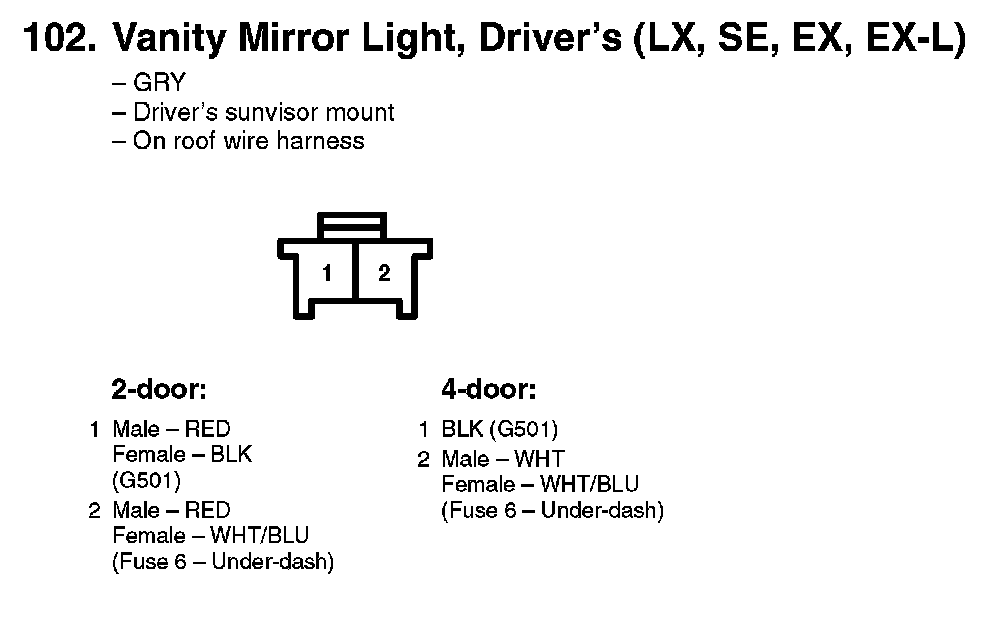

102. Vanity Mirror Light, Driver's (LX, SE, EX, EX-L):
103. Vanity Mirror Light, Front Passenger's (LX, SE, EX, EX-L):
