Accord V6-3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Variable Valve Timing Solenoid
Variable Valve Timing Solenoid

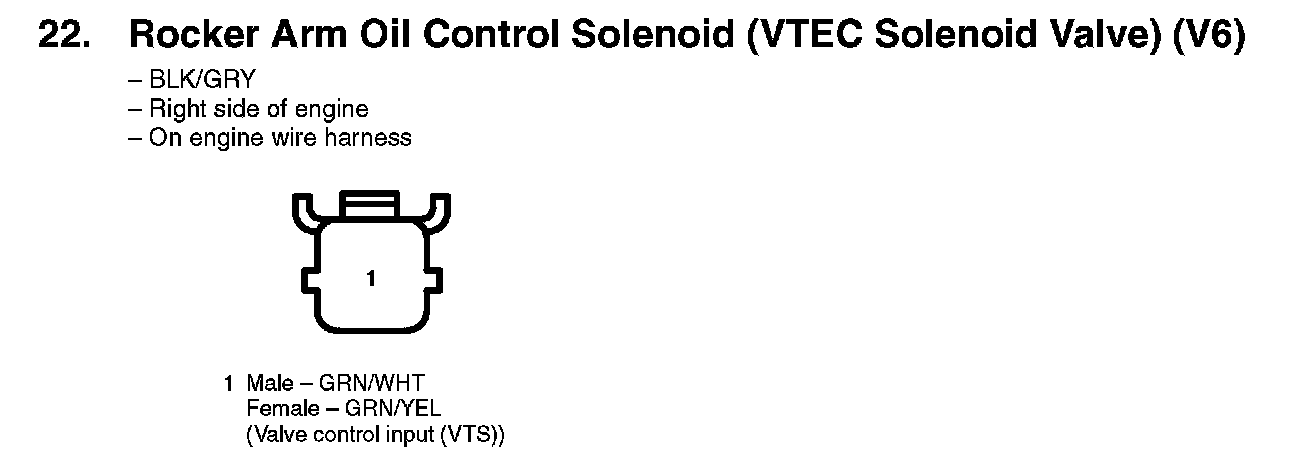

22. Rocker Arm Oil Control Solenoid (VTEC Solenoid Valve) (V6):
