Home >> Honda >> 2007 >> Accord V6-3.0L >> Repair and Diagnosis >> Diagrams >> Grounds >> G3

G3

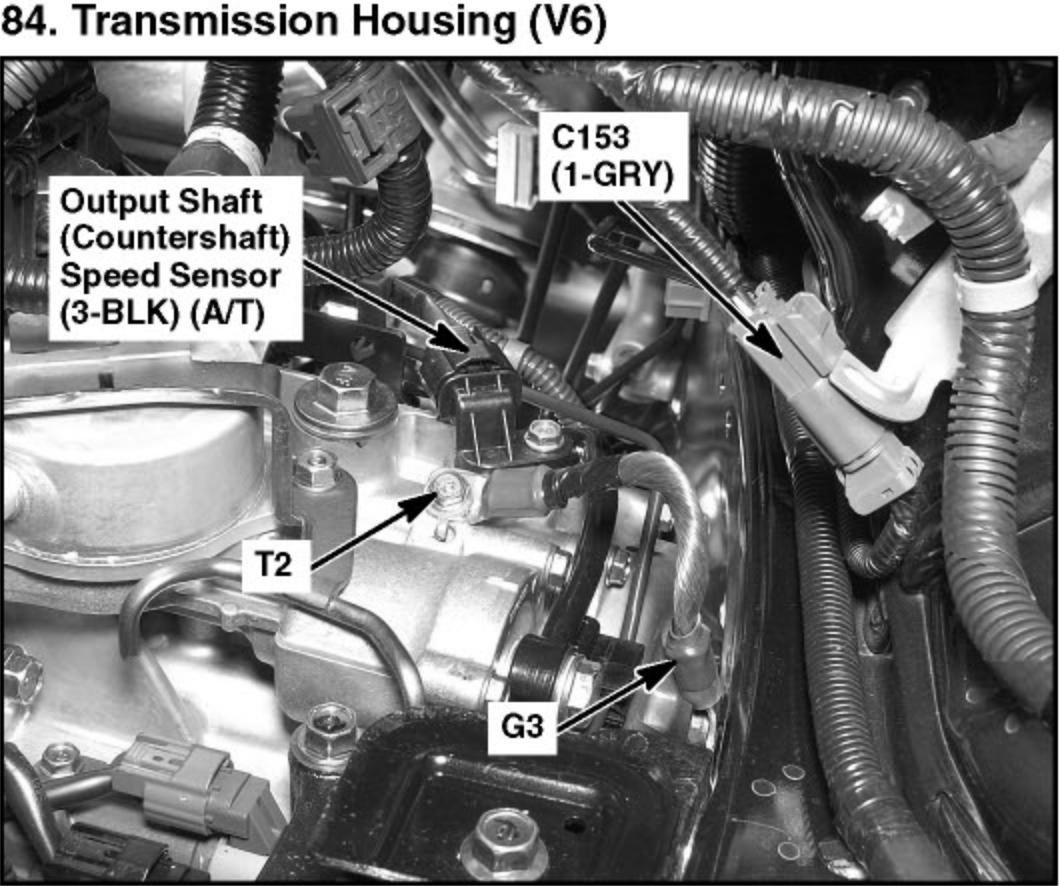

84. Transmission Housing (V6):

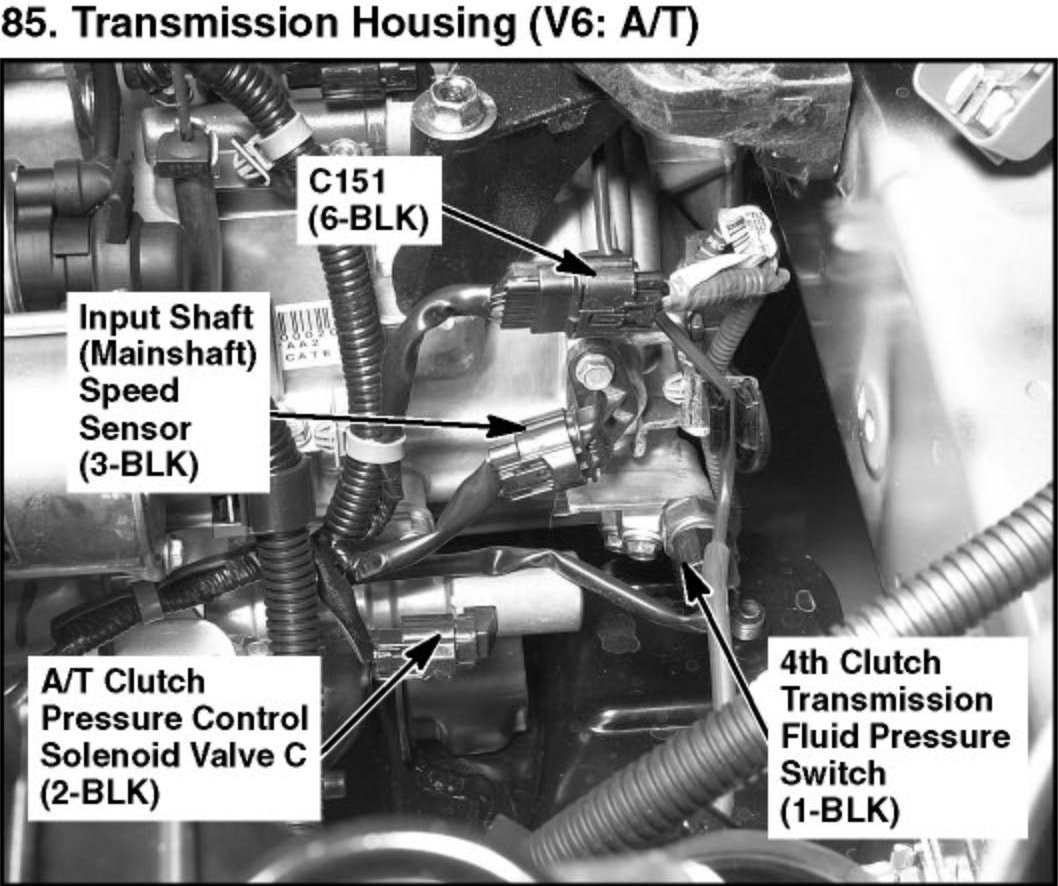

85. Transmission Housing (V6: A/T):
