Rear Window Defogger Coil/Ground Wire (2-Door)
Rear Window Defogger Coil/Ground Wire (2-Door)

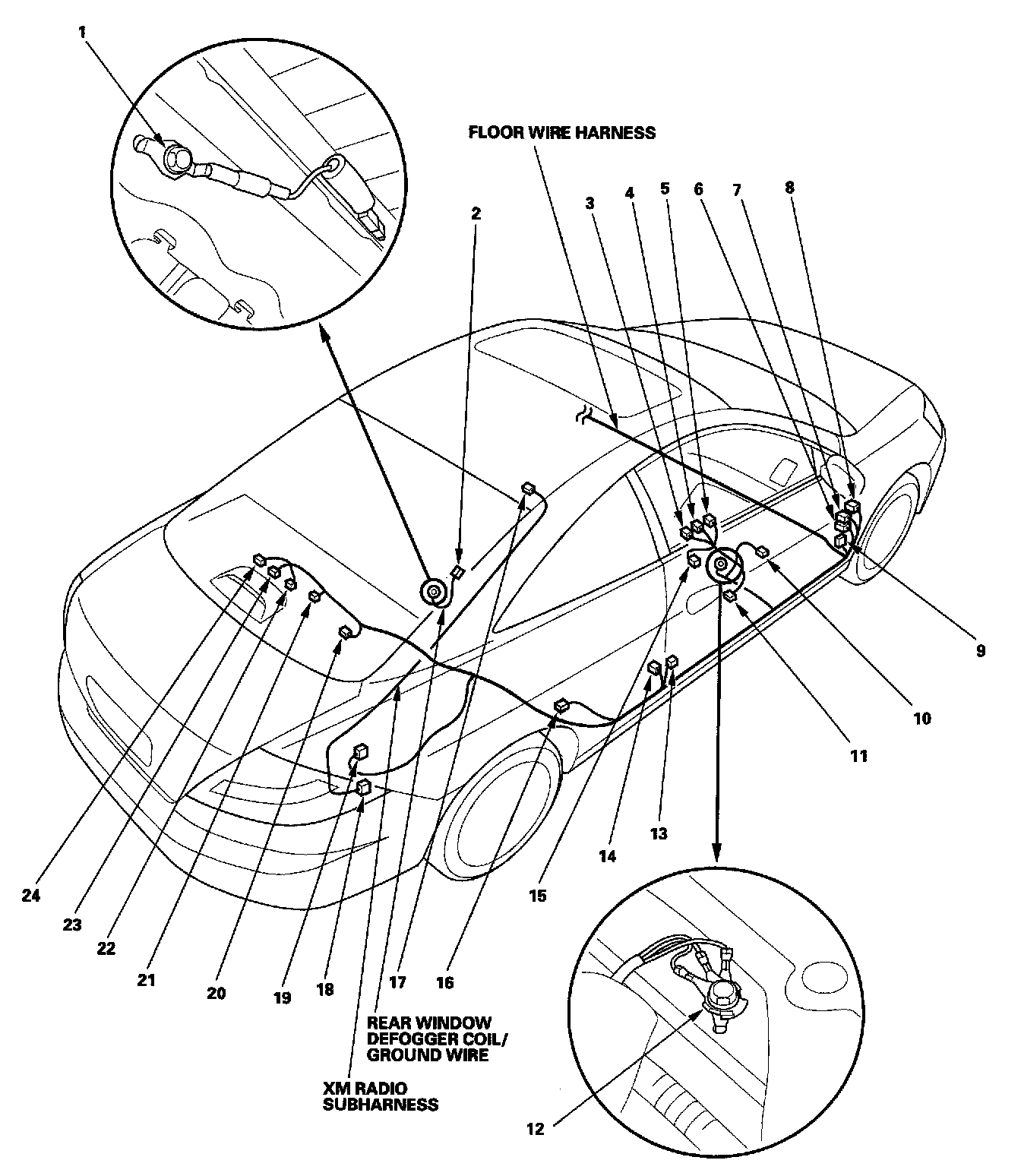

Harness Location View:

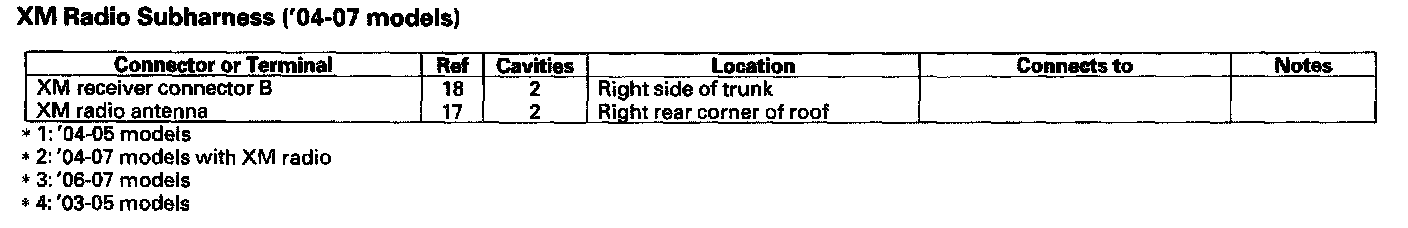

XM Radio Subharness:
