Auxiliary Power Outlet: Locations

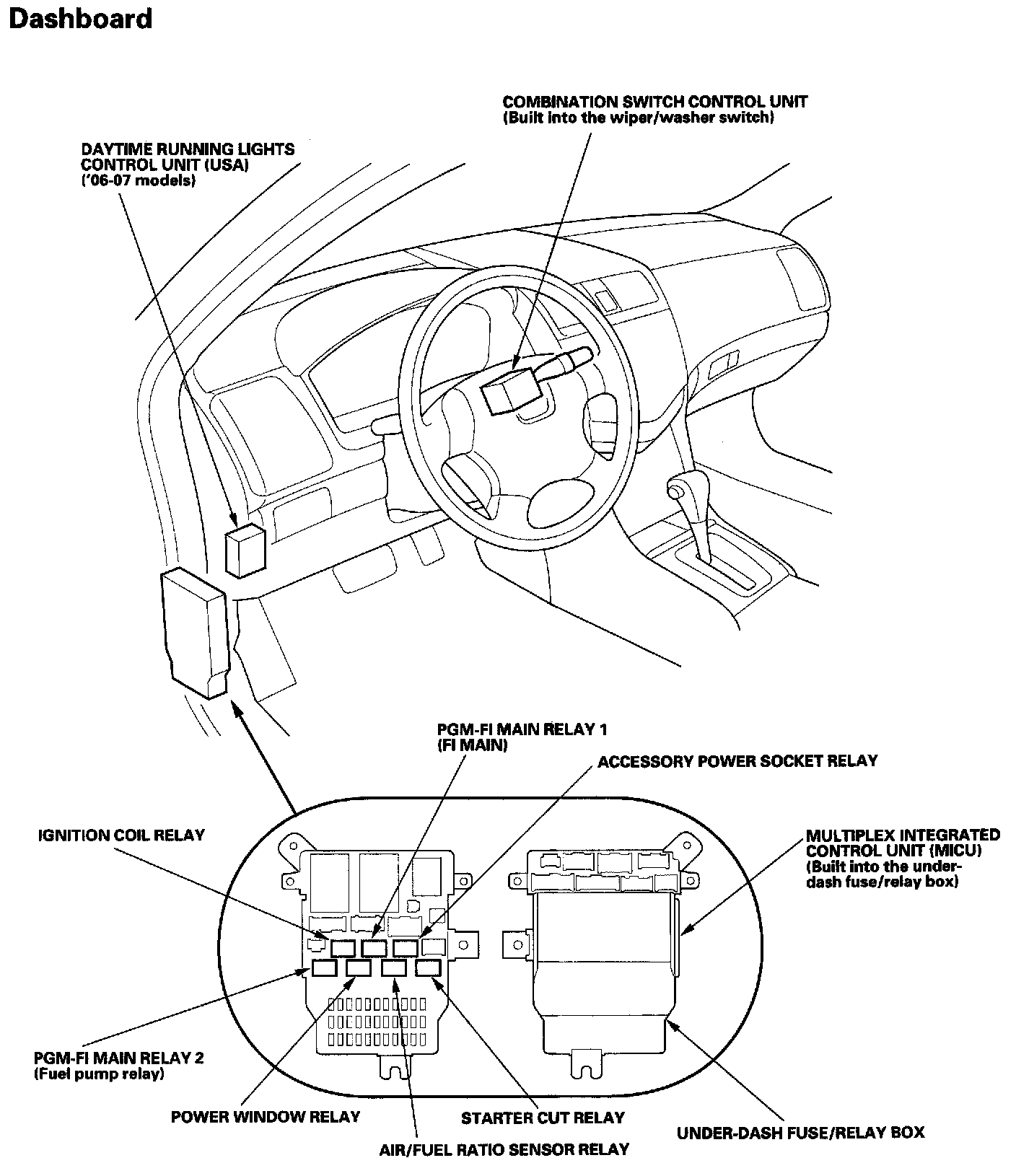

Relay And Control Unit Locations - Dashboard:



Wipers/Washers Component Location Index:
