A/C - Poor Cooling Ability
07-075November 2, 2007
Applies To:
2007 Accord L4 4-Door - From VIN 1HGCM....7A049340 thru 1HGCM....7A052091
2007 Accord V6 4-Door - From VIN 1HGCM....7A032004 thru 1HGCM....7A034096
Poor A/C Performance, and Uneven Vent Temperatures
SYMPTOM
The A/C cools poorly, and the driver's vent temperature is warmer than the passenger's vent temperature.
PROBABLE CAUSE
A mis-manufactured evaporator core.
CORRECTIVE ACTION
Replace the evaporator core.
PARTS INFORMATION
Evaporator: P/N 80211-SDA-A01, H/C 7157100

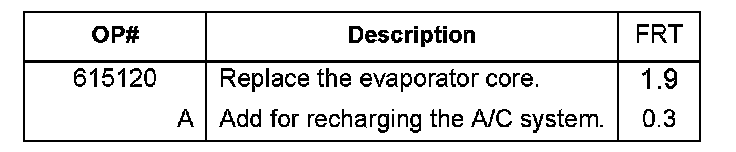

WARRANTY CLAIM INFORMATION
In warranty:
The normal warranty applies.
Failed Part: P/N 80211-SDA-A01
H/C 7157100
Defect Code: 05401
Symptom Code 03220
Skill Level: Repair Technician
Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Parts and Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.
REPAIR PROCEDURE
1. Replace the evaporator core:
^ Refer to page 21-57 of the 2003-2007 Accord Service Manual, or
^ Online, enter keywords EVAPORATOR CORE, and select A/C Evaporator Core Replacement (4-door L4 engine with A/C) or A/C Evaporator Core Replacement(4-door V6 engine) from the list.
2. Operate the A/C, and make sure it is working correctly.
