Body - Popping/Creaking From Driver's Side A-Pillar
07-013February 27, 2007
Applies To:
2006-07 Accord - See VEHICLES AFFECTED
Driver's Side A-Pillar Creaks or Pops
SYMPTOM
A creaking or popping comes from the driver's-side A-pillar or the upper-left dashboard area when you are driving 5 mph or slower over speed bumps or during on/off throttle applications (causing a rocking motion).
PROBABLE CAUSE
The left upper bulkhead panel and the adjacent damper tower panel contact each other in the above mentioned conditions.
VEHICLES AFFECTED
CORRECTIVE ACTION
Widen the clearance between the damper tower panel and the left upper bulkhead panel.

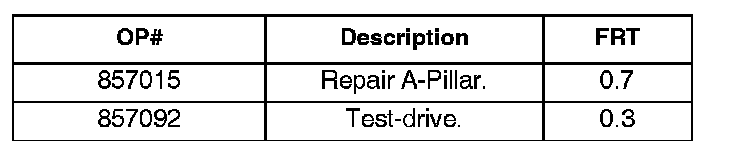

WARRANTY CLAIM INFORMATION
In warranty:
The normal warranty applies.
Failed Part: P/N 61500-SDA-A70ZZ
H/C 7140775
Defect Code: 03217
Symptom Code: 04201
Template ID: 07-013A
Skill Level: Repair Technician
Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Parts and Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.
DIAGNOSIS
1. Test-drive the vehicle under the same conditions as the customer described until you duplicate the noise.
2. Open the hood, and slide a long 1.5-mm feeler gauge or a similar thickness metal ruler between the left upper bulkhead and the left damper tower.
^ If you cannot insert the feeler gauge or ruler, if it's difficult to insert, go to REPAIR PROCEDURE.
^ If the feeler gauge or ruler slides in easily, this bulletin does not apply. Check for other causes of the customer's complaint.
REPAIR PROCEDURE

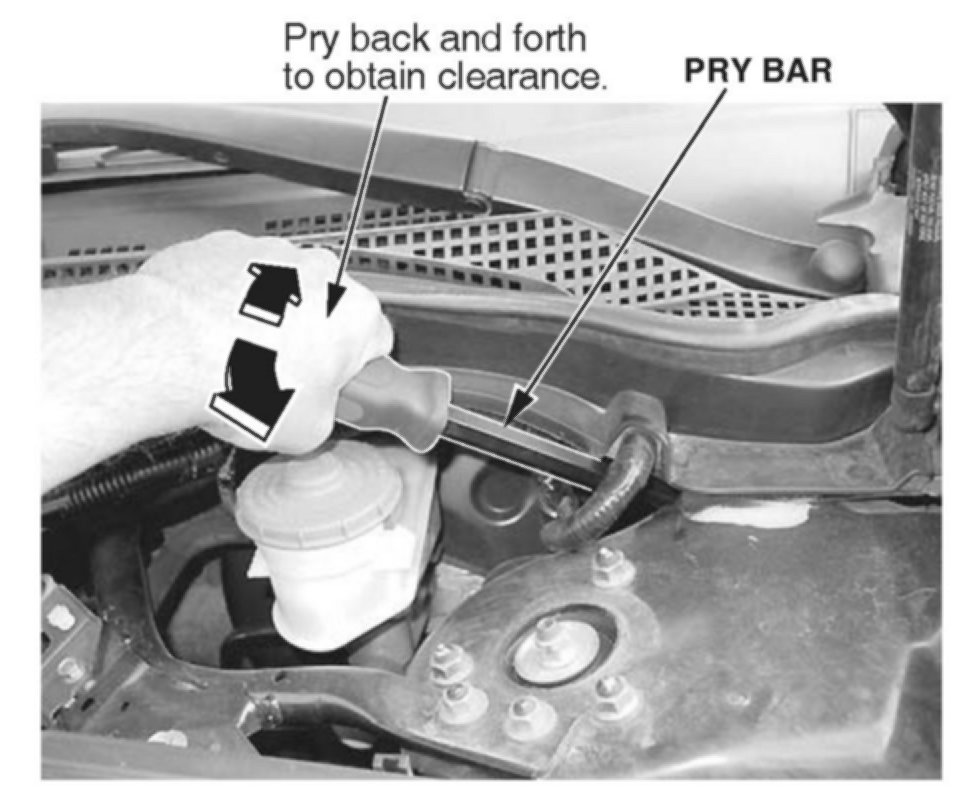

1. Insert a pry bar wrapped with a shop towel between the left upper bulkhead and the left damper tower.
2. Gently pry back and forth with the pry bar to obtain 1.5 mm clearance between the panels.
3. Test-drive the vehicle by accelerating and decelerating to make sure there is no creaking or popping. If you hear the noise, recheck the clearance between the left upper bulkhead and the left damper tower.
