Home >> Honda >> 2007 >> Civic L4-1.8L CNG >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Tank Temperature Sensor (CNG)

Fuel Tank Temperature Sensor (CNG)

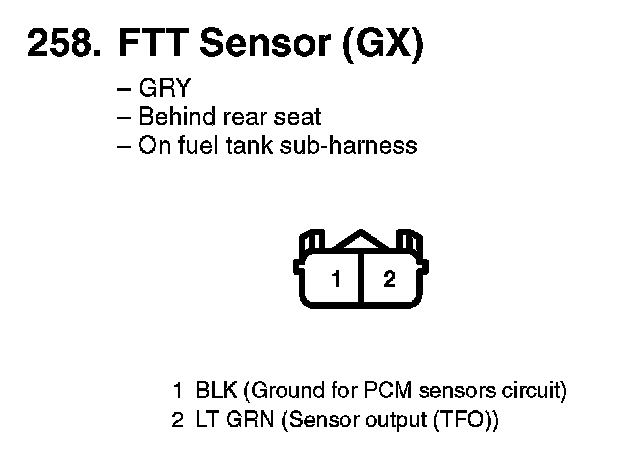

258. FTT Sensor (GX):
