P0812
DTC P0812: Open in Transmission Range Switch ATP R Switch CircuitNOTE:
^ Before you troubleshoot, record all freeze data and any on-board snapshot, and review General Troubleshooting Information.
^ This code is caused by an electrical circuit problem and cannot be caused by a mechanical problem in the transmission.
1. Turn the ignition switch ON (II).
2. Shift to the R position, and verify the A/T R SWITCH in the DATA LIST with the HDS.
Is the A/T R SWITCH ON?
YES - Intermittent failure, the system is OK at this time.
NO - Go to step 3.
3. Turn the ignition switch OFF.
4. Disconnect the transmission range switch connector.

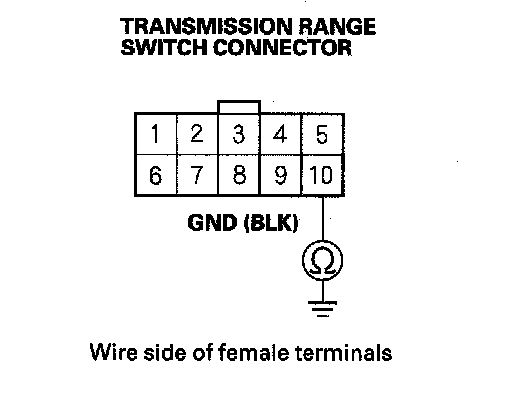

5. Check for continuity between transmission range switch connector terminal No. 10 and body ground.
Is there continuity?
YES - Go to step 6.
NO - Repair open in the wire between transmission range switch connector terminal No. 10 and ground (G101), or repair poor ground (G101), then go to step 9.
6. Turn the ignition switch ON (II).

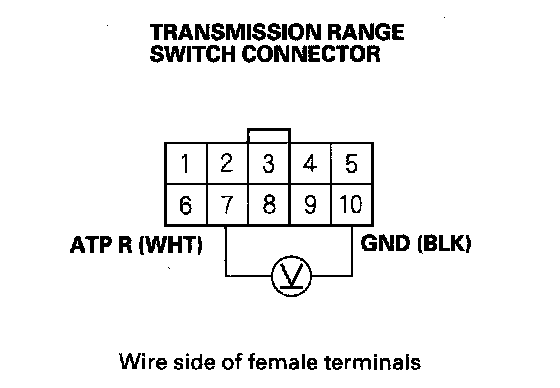

7. Measure voltage between transmission range switch connector terminals No. 7 and No. 10.
Is there battery voltage?
YES - Go to step 8.
NO - Repair open in the wire between PCM connector terminal B14 and the transmission range switch, then go to step 9.
8. Check for continuity between transmission range switch connector terminals No. 7 and No. 10 while the shift lever is in the R position, and when the shift lever is shifted to any position other than R.
Is there continuity while the shift lever is in the R position, and no continuity when the shift lever is shifted to any position other than R?
YES - Go to step 15.
NO - Replace the transmission range switch, then go to step 9.
9. Reconnect all connectors.
10. Turn the ignition switch ON (II).
11. Clear the DTC with the HDS.
12. Test-drive the vehicle in the R position at speeds below 3 mph (5 km/h) for more than 2 seconds, then increase the speed and test-drive at speeds over 3 mph (5 km/h) for more than 2 seconds.
13. Check for DTCs with the HDS.
Is DTC P0812 indicated?
YES - Check for poor connections or loose terminals between the transmission range switch and the PCM, then go to step 1.
NO - Go to step 14.
14. Monitor the OBD STATUS for P0812 in the DTCs MENU with the HDS.
Does the screen indicate PASSED?
YES - Troubleshooting is complete. If any other DTCs were indicated in step 13, go to the indicated DTC's troubleshooting.
NO - If the screen indicates FAILED, check for poor connections or loose terminals between the transmission range switch and the PCM, then go to step 1. If the screen indicates NOT COMPLETED, go to step 12.
15. Update the PCM if it does not have the latest software, or substitute a known good PCM.
16. Test-drive the vehicle in the R position at speeds below 3 mph (5 km/h) for more than 2 seconds, then increase the speed and test-drive at speeds over 3 mph (5 km/h) for more than 2 seconds.
17. Check for DTCs with the HDS.
Is DTC P0812 indicated?
YES - Check for poor connections or loose terminals between the transmission range switch and the PCM. If the PCM was updated, substitute a known-good PCM, then go to step 16. If the PCM was substituted, go to step 1.
NO - Go to step 18.
18. Monitor the OBD STATUS for P0812 in the DTCs MENU with the HDS.
Does the screen indicate PASSED?
YES - If the PCM was updated, troubleshooting is complete. If the PCM was substituted, replace the original PCM. If any other DTCs were indicated in step 17, go to the indicated DTC's troubleshooting. E
NO - If the screen indicates FAILED, check for poor connections or loose terminals between the transmission range switch and the PCM. If the PCM was updated, substitute a known-good PCM, then go to step 16. If the PCM was substituted, go to step 1. If the screen indicates NOT COMPLETED, go to step 16.
