Center Mounted Brake Lamp
Center Mounted Brake Lamp

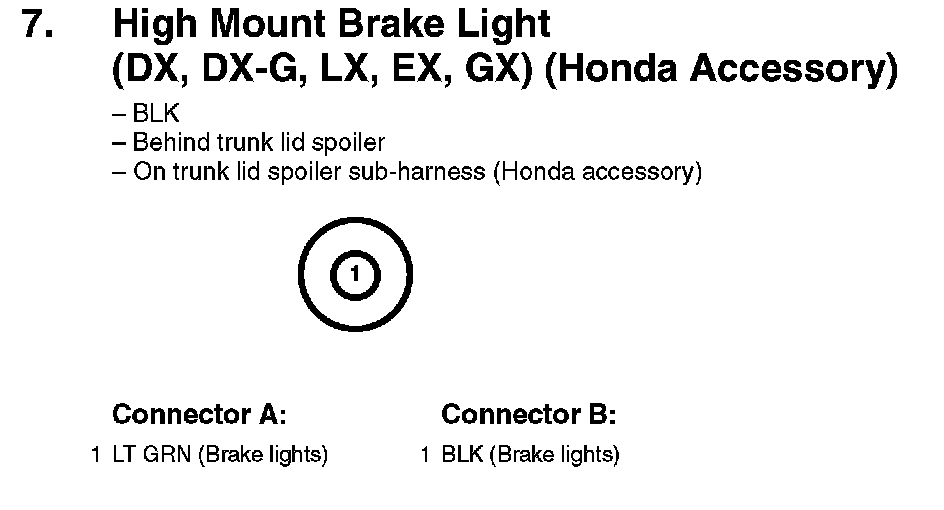

7. High Mount Brake Light (DX, DX-G, LX, EX, GX) (Honda Accessory):

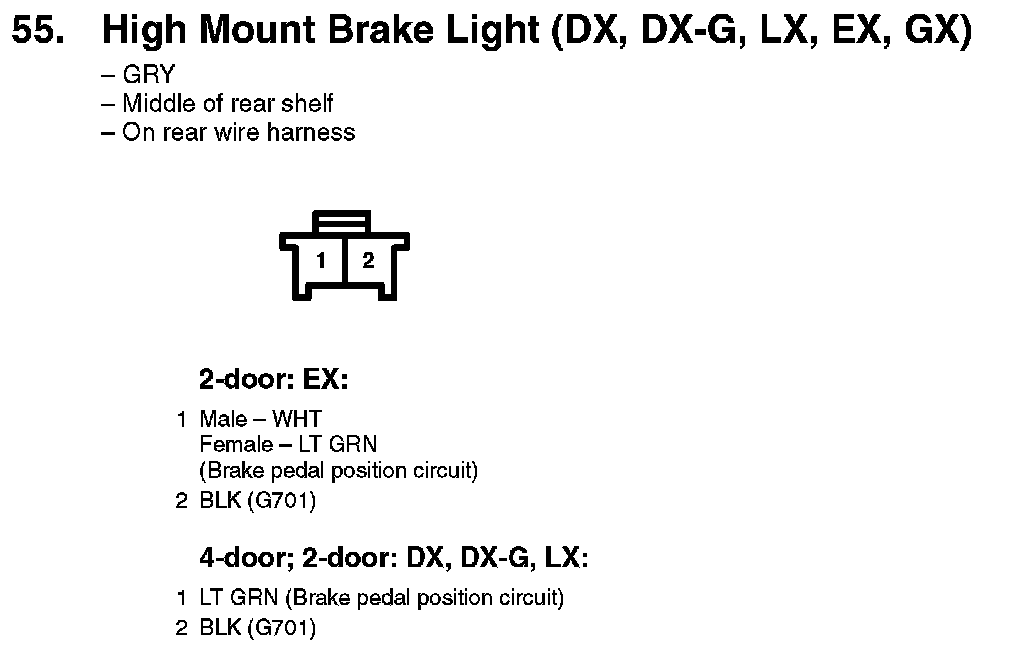

55. High Mount Brake Light (DX, DX-G, LX, EX, GX):
