Coil Subcord (2-Door)
Coil Subcord (2-Door)

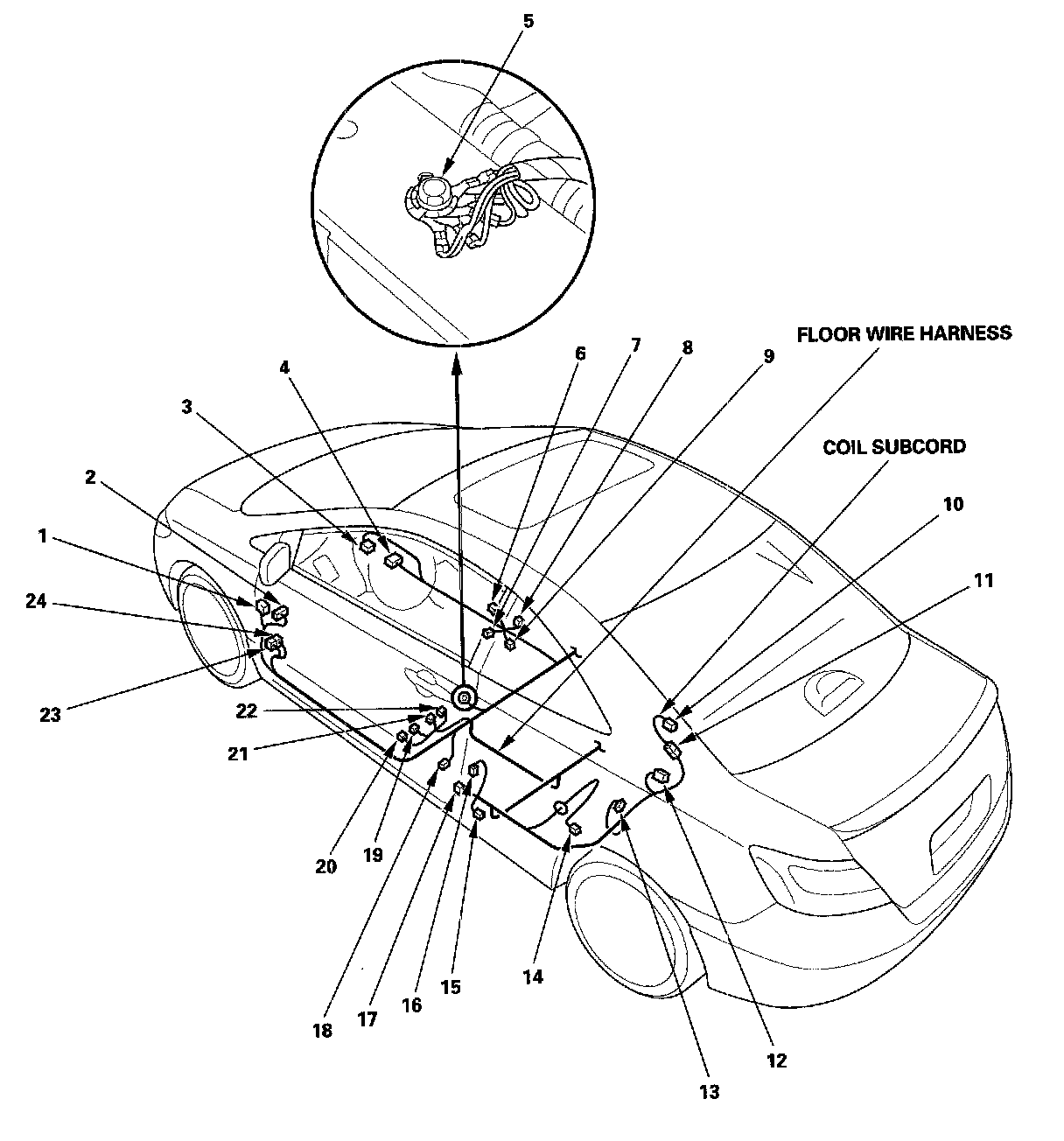

Harness Location View:
Floor Wire Harness (Left Branch) (2-door):
Harness Location View:
Floor Wire Harness (Left Branch) (2-door):
