Driver's Door Subharness (2-Door)
Driver's Door Subharness (2-Door)

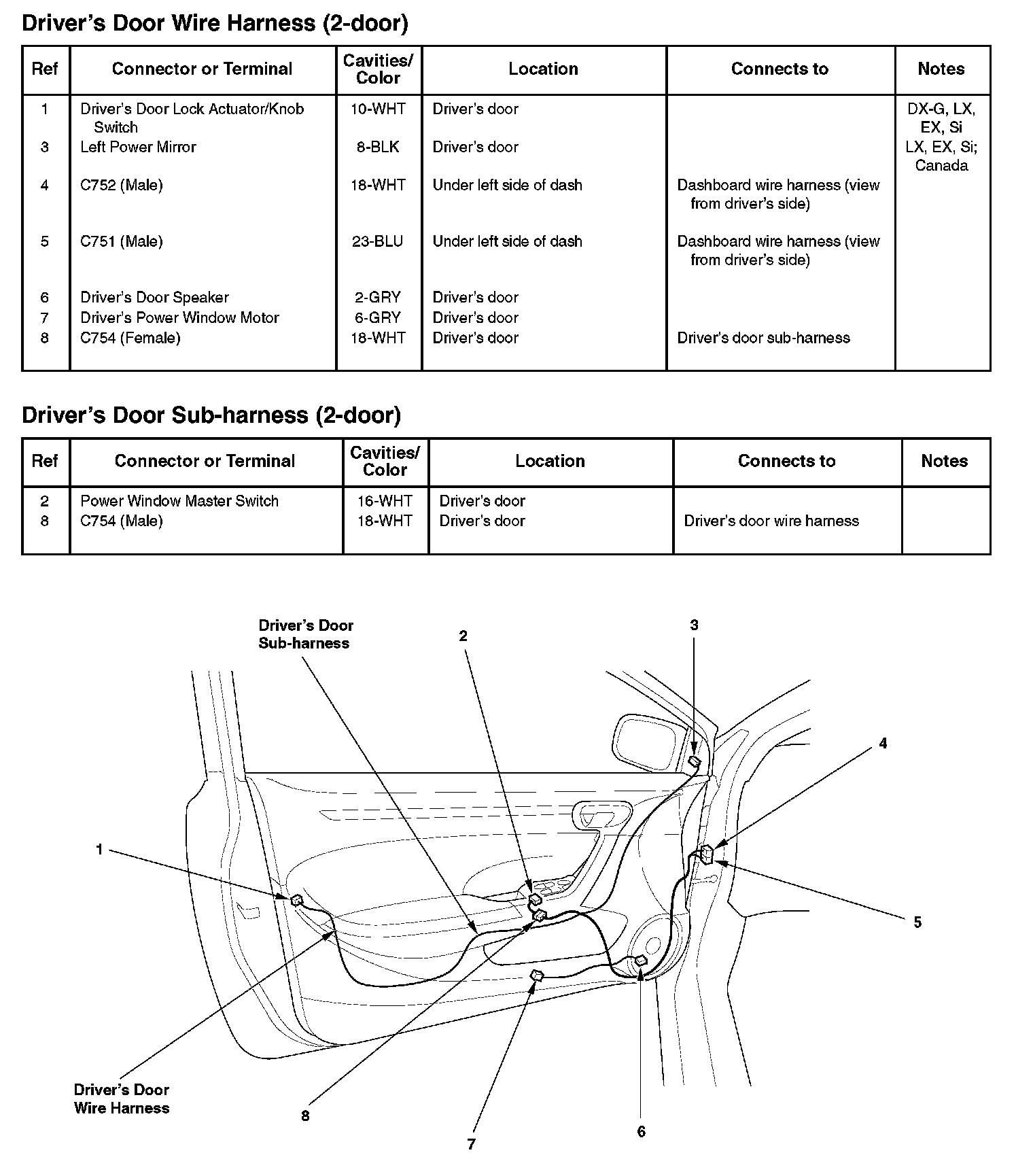

Driver's Door Wire Harness (2-door) / Driver's Door Subharness (2-door):
Driver's Door Wire Harness (2-door)/Driver's Door Sub-harness (2-door):
