Passenger's Door Subharness (2-Door)

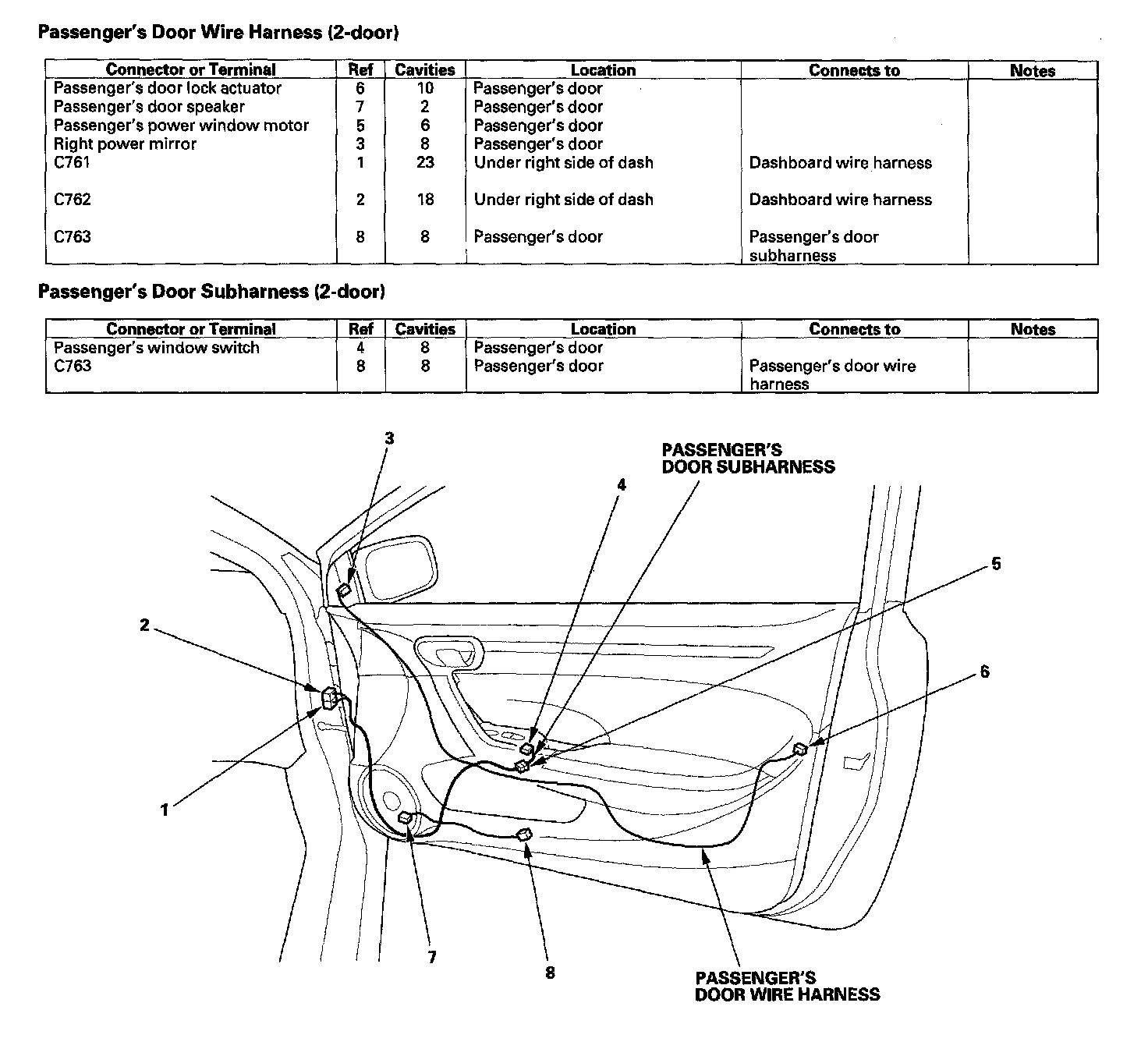

Passenger's Door Wire Harness (2-door) / Passenger's Door Subharness (2-door):
