Center Mounted Brake Lamp: Service and Repair

High Mount Brake Light Replacement

Except Si models
1. Open the trunk lid.

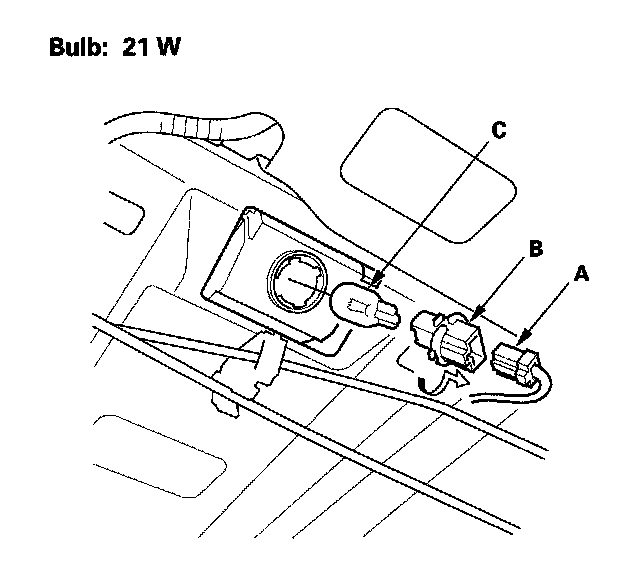

2. Disconnect the 2P connector (A) from the high mount brake light.
3. Turn the bulb socket (B) 45° counterclockwise to remove the bulb (C).
4. Remove the rear shelf.
- 2-door
- 4-door

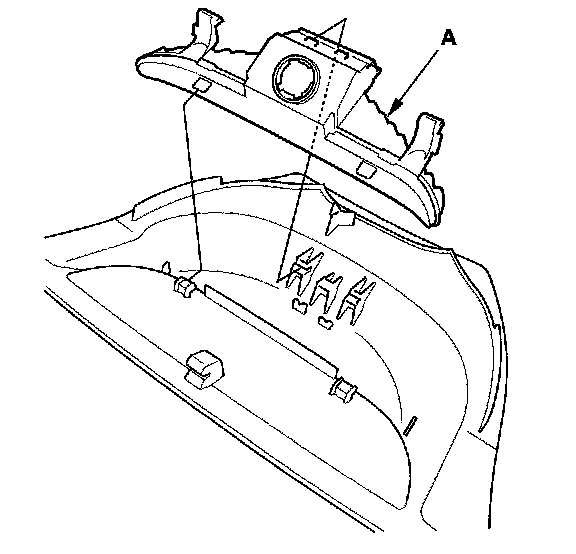

5. Remove the high mount brake light (A).
6. Install the light in the reverse order of removal.
