Shift Fork Clearance Inspection

Shift Fork Clearance Inspection

NOTE: The synchro sleeve and synchro hub should be replaced as a set.

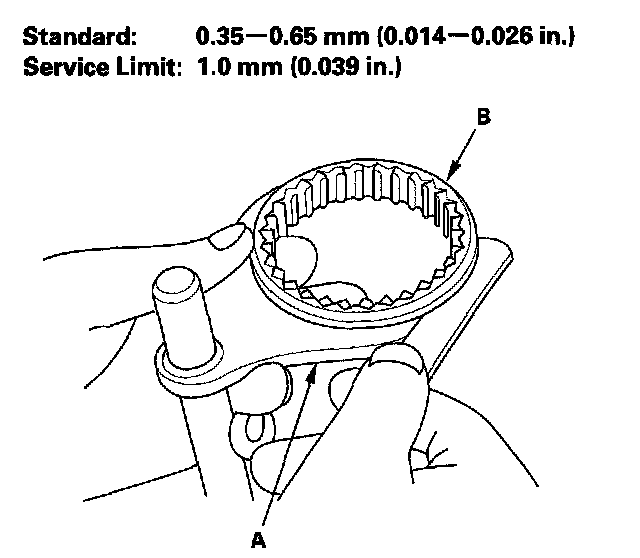

1. Measure clearance between each shift fork (A) and its matching synchro sleeve (B). If the clearance exceeds the service limit, go to step 2.





2. Measure thickness of the shift fork fingers.
^ If the thickness is not within the standard, replace the shift fork.
^ If the thickness is within the standard, replace the synchro sleeve and synchro hub as a set.

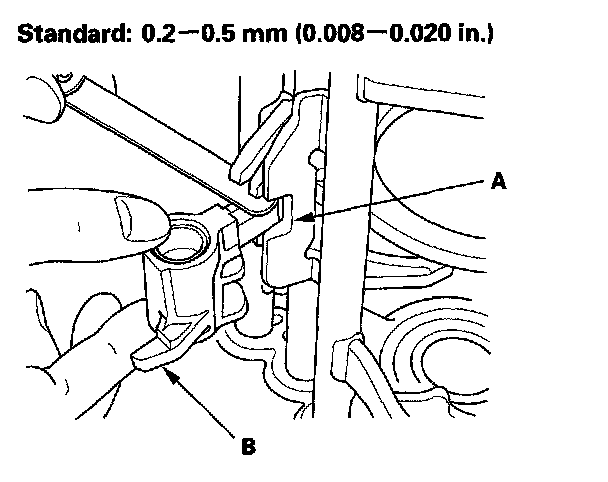

3. Measure clearance between the shift fork (A) and the shift piece (B). If the clearance exceeds the standard, go to step 4.

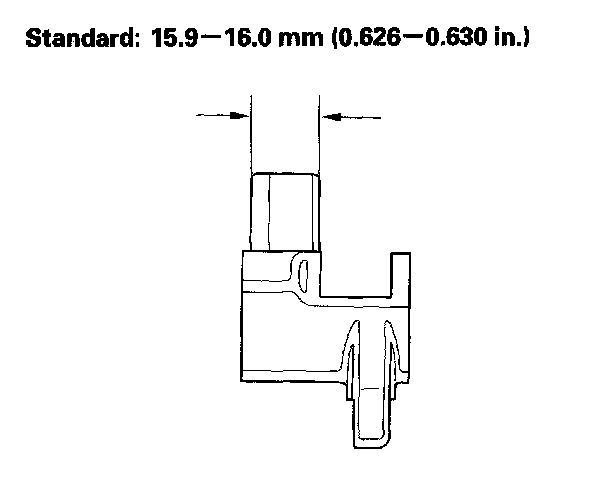

4. Measure width of the shift piece.
^ If the width is not within the standard, replace the shift piece.
^ If the width is within the standard, replace the shift fork.
