Radio, Stereo, and Compact Disc: Description and Operation

System Description

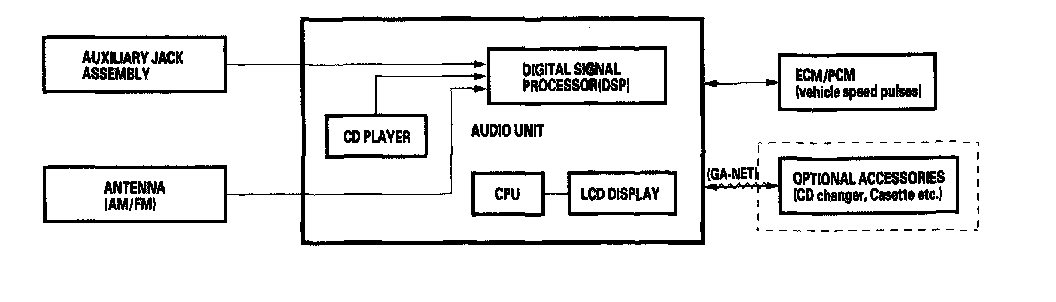

Overview




The Audio Unit acts as the "processor" for all audio functions. Select audio functions from the front panel. The audio display provides the current audio status. (See the owner's manual for more details.)
It also has a built-in diagnostic function that displays system failures on the LCD display.
The system includes speed-sensitive volume compensation (SVC). This function adjusts the audio system automatically in proportion to the vehicle speed. The volume gain can be adjusted in three stages.
A security signal is daisy-chained between the audio and vehicle components, and are integrated into the vehicle's alarm system.

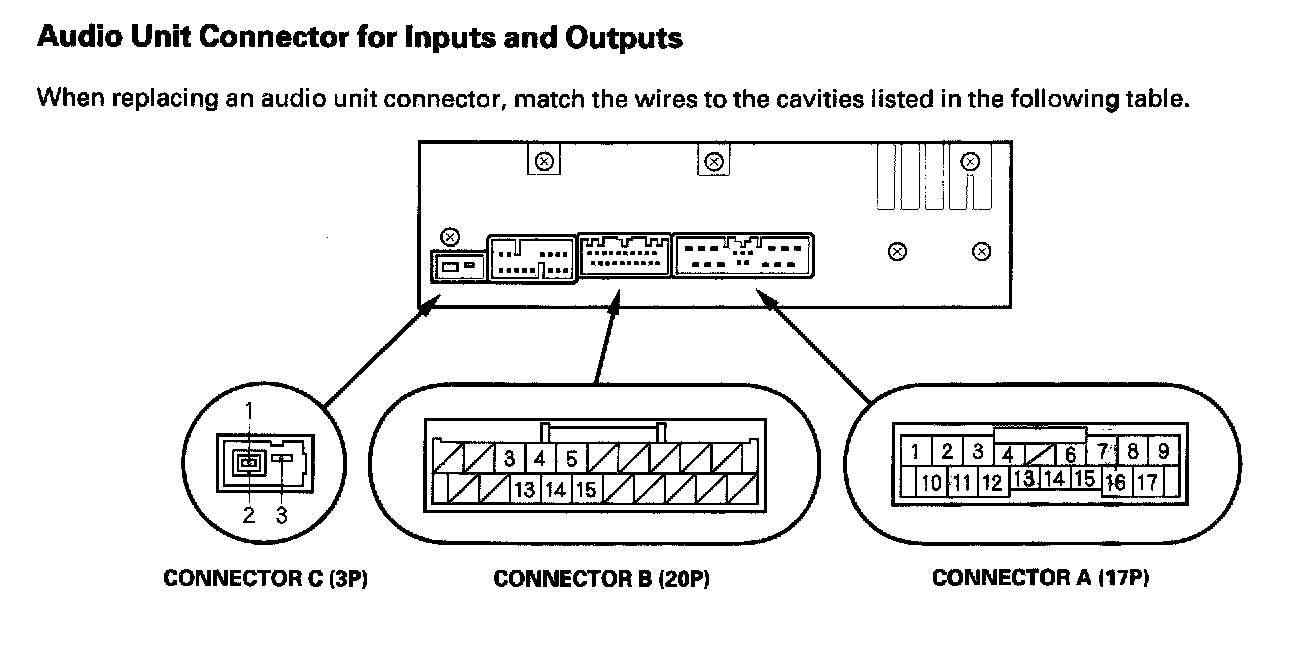

Audio Unit Connector For Inputs And Outputs Part 1:

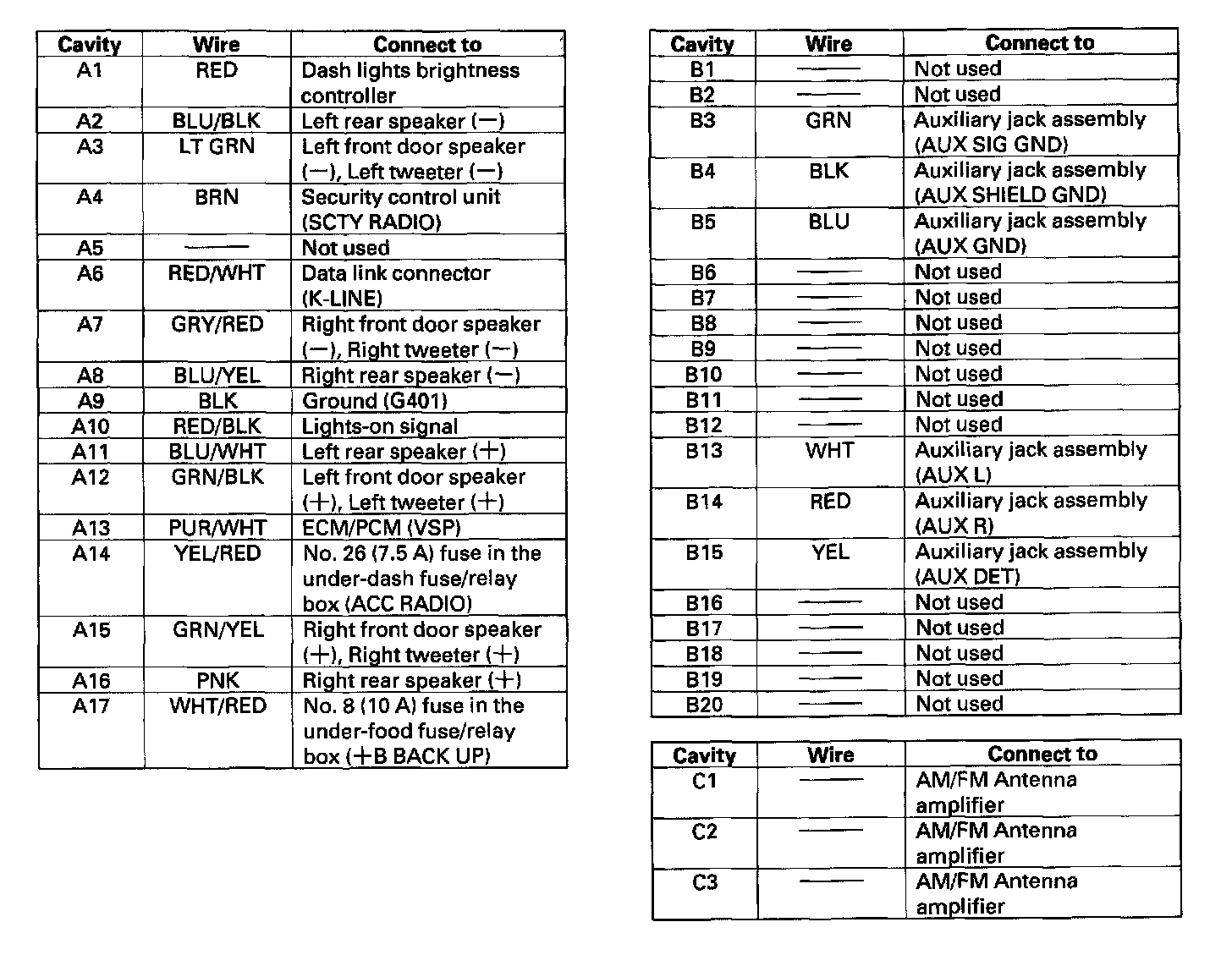

Audio Unit Connector For Inputs And Outputs Part 2:

Audio Unit Connector for Inputs and Outputs

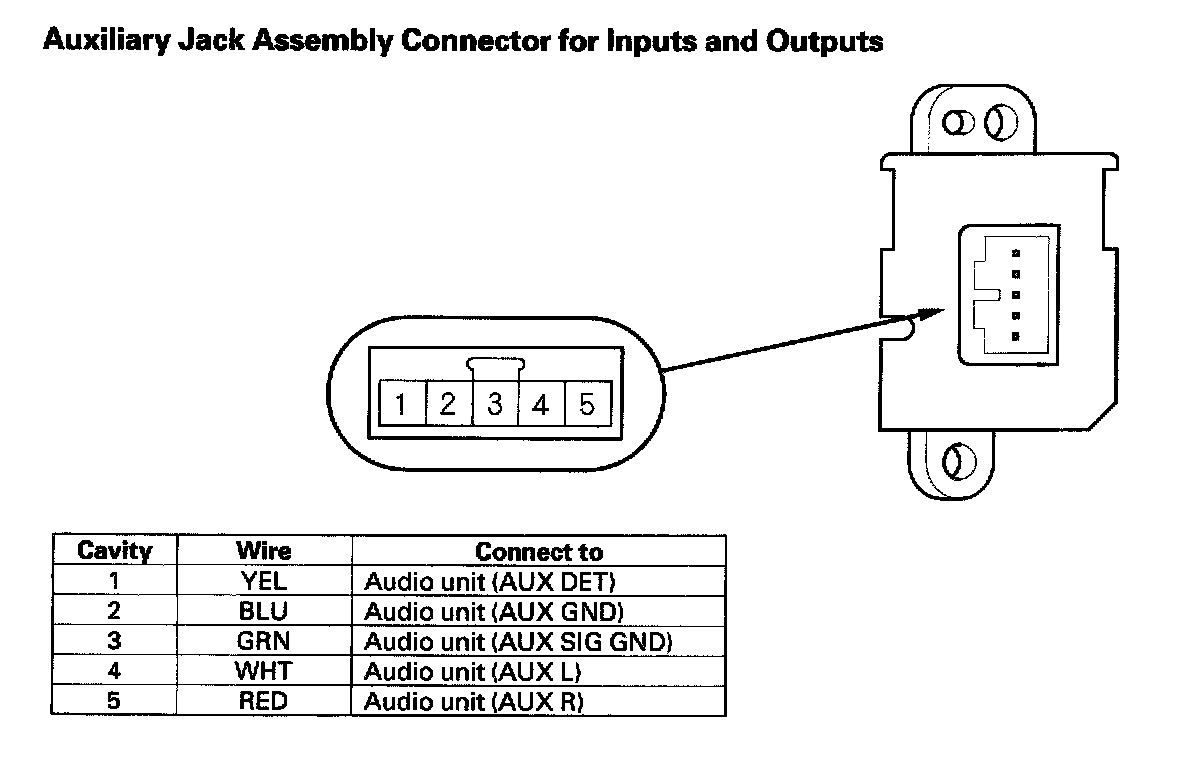

Auxiliary Jack Assembly Connector For Inputs And Outputs:

Auxiliary Jack Assembly Connector for Inputs and Outputs

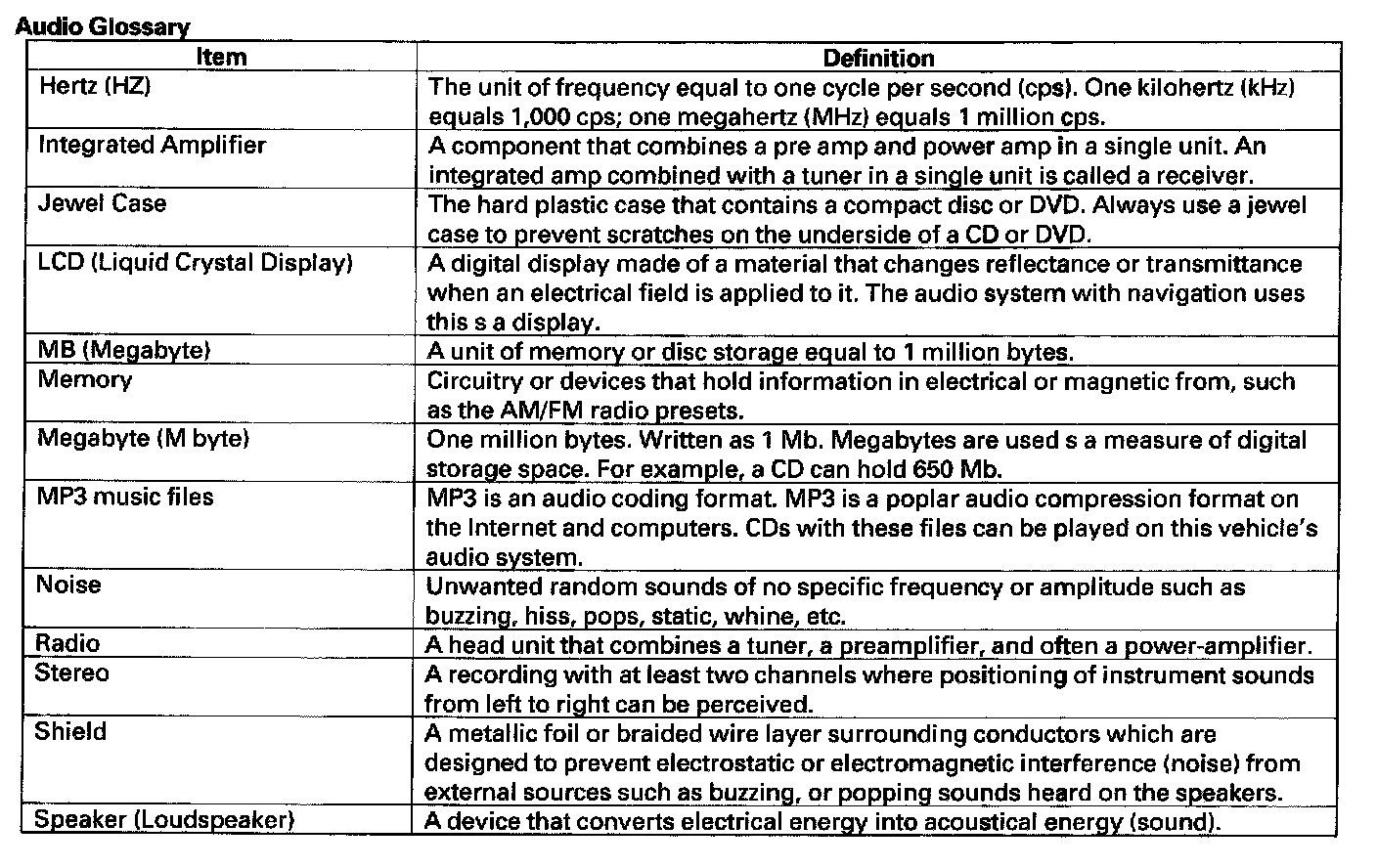

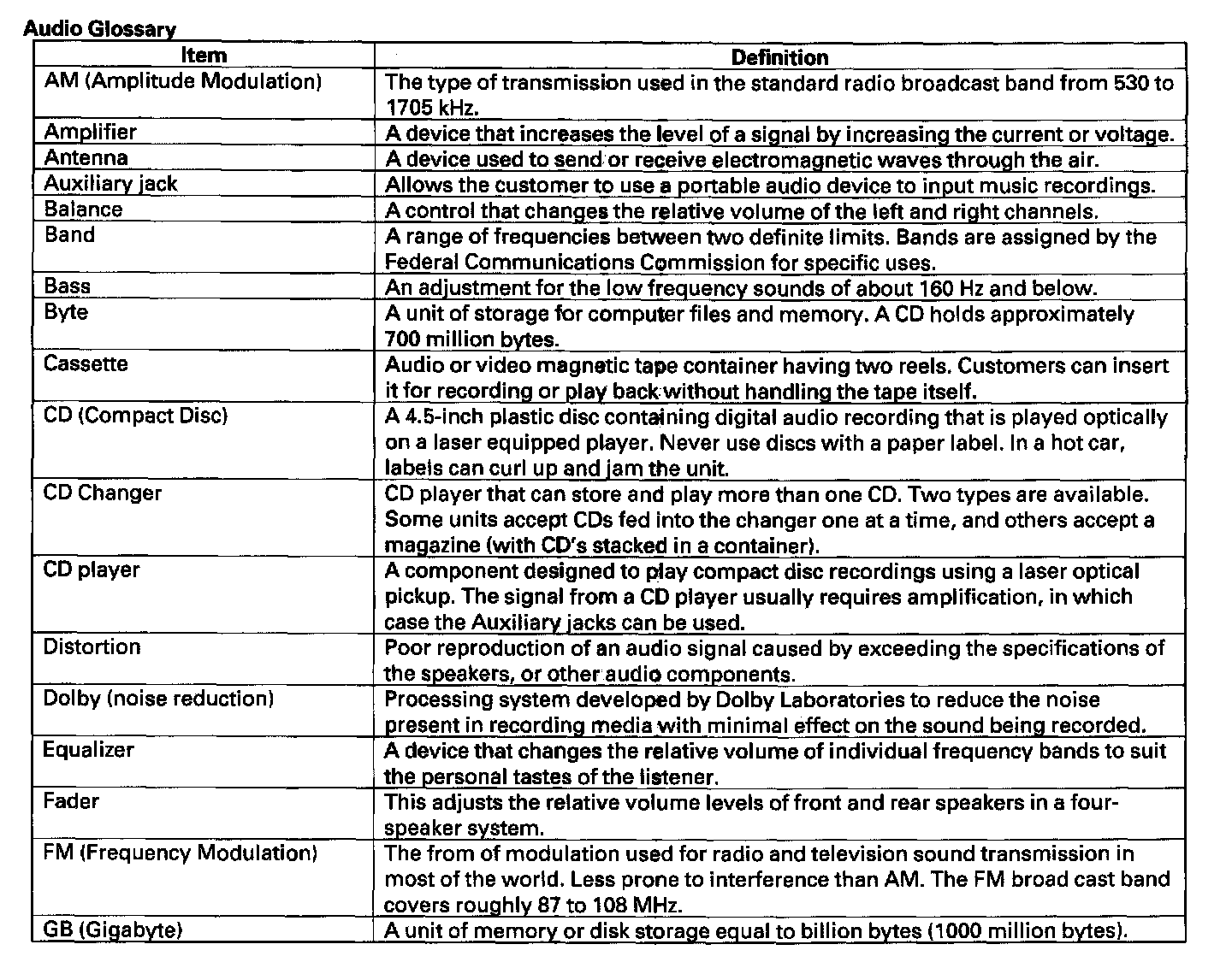

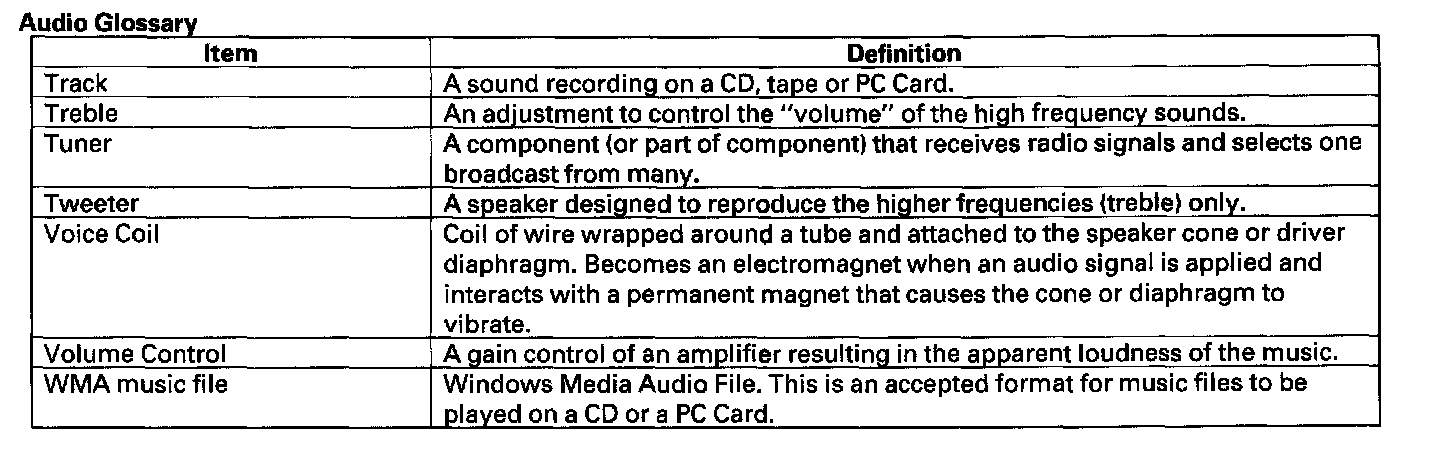

Audio Glossary
