Radio, Stereo, and Compact Disc: Locations

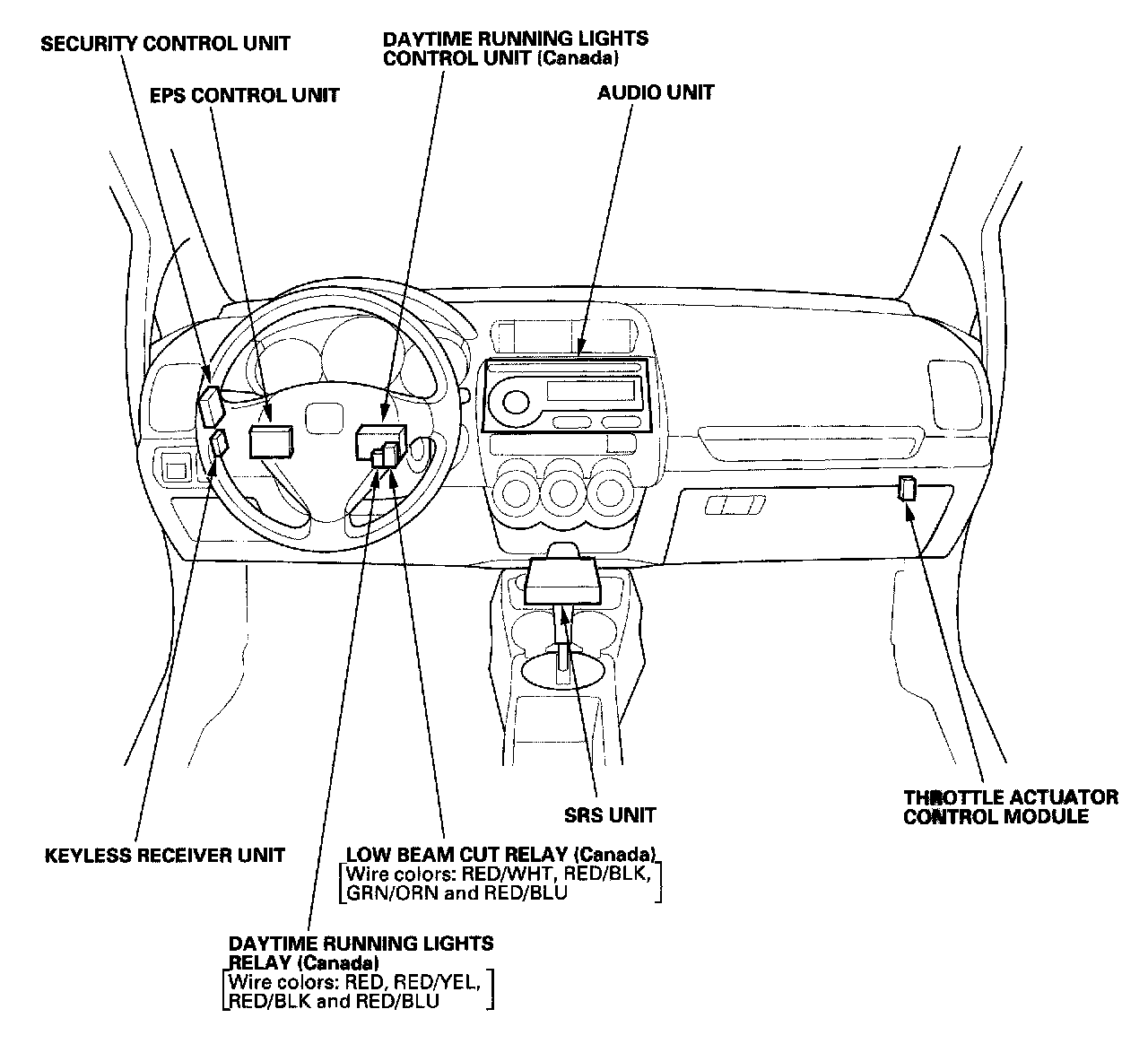

Relay And Control Unit Locations Dashboard:

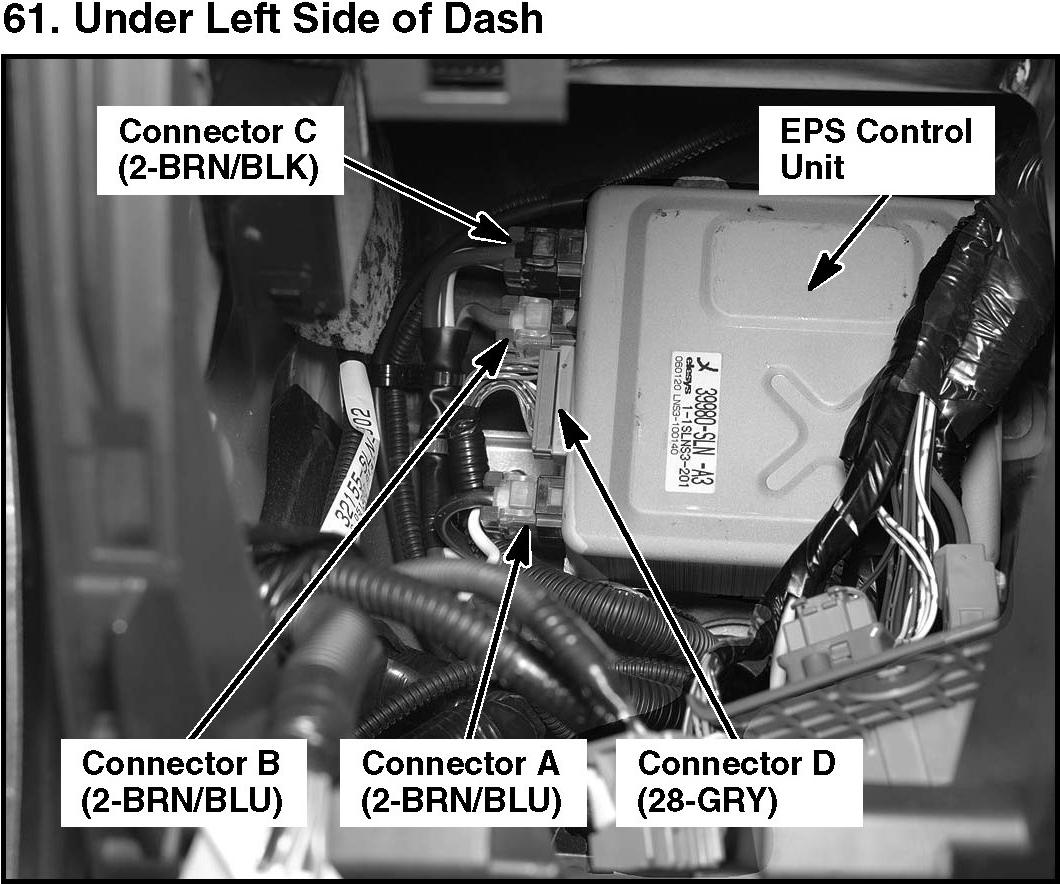

61. Under Left Side Of Dash:
