Radio, Stereo, and Compact Disc: Service and Repair

Audio Unit Removal/Installation

SRS components are located in this area. Review the SRS component locations.
Also review the precautions and procedures in the SRS section before doing repairs or service.

NOTE:

- Put on gloves to protect your hands.
- Take care not to scratch the dashboard and related parts.
- Lay a workshop towel under the parts when working on them to protect the face panel from scratches or other damage.
- Do not work in a dusty or dirty place.
- Discharge static electricity from your body before and during the work.
- Do not touch the circuit board(s) with your bare hands.
- Do not work with dirty hands.
- Be careful not to fold the flat plate cable.
- Do not touch the terminal connector of the flat plate cable with your bare hands. (If you have touched it, wipe it off thoroughly.)

1. Make sure you have the anti -theft code for the audio system, then write down the customer's audio presets.
2. Remove the center panel.

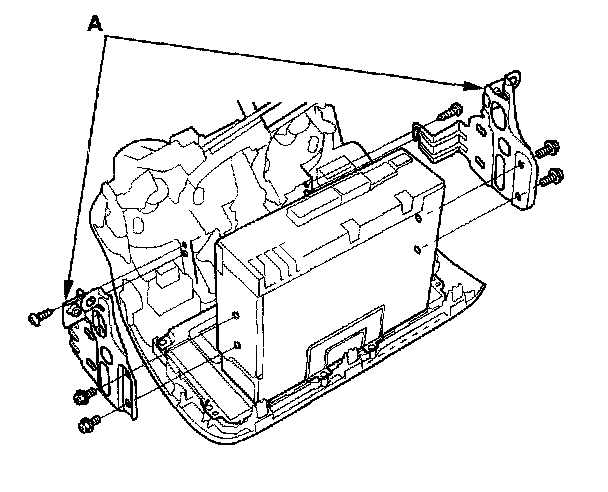

3. Remove the six mounting screws, then remove the bracket (A).

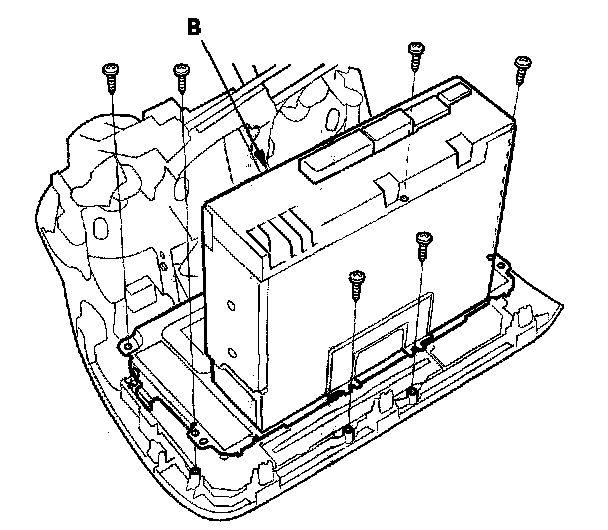

4. Remove the six mounting screws, then remove the audio unit (B).




5. Remove the knob dial (C).
6. Install in the reverse order of removal, and note these items:
- Make sure all connectors and antenna sublead are secure.
- Enter the anti-theft code for the audio system, then enter the customer's audio presets, and set the clock.
