Clutch Switch: Testing and Inspection
Clutch Pedal Position Switch TestM/T model

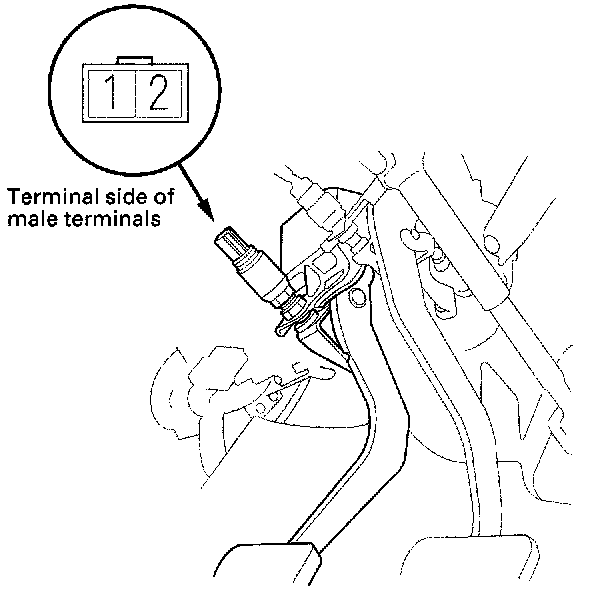

1. Disconnect the 2P connector from the clutch pedal position switch,
2. Remove the clutch pedal position switch.

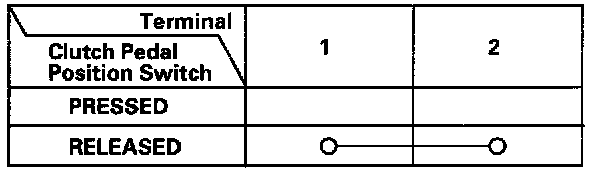

3. Check for continuity between the terminals according to the table.
- If the continuity is not as specified, replace the clutch pedal position switch.
- If OK, install the clutch pedal position switch and adjust the pedal height.
