Air Conditioning Switch

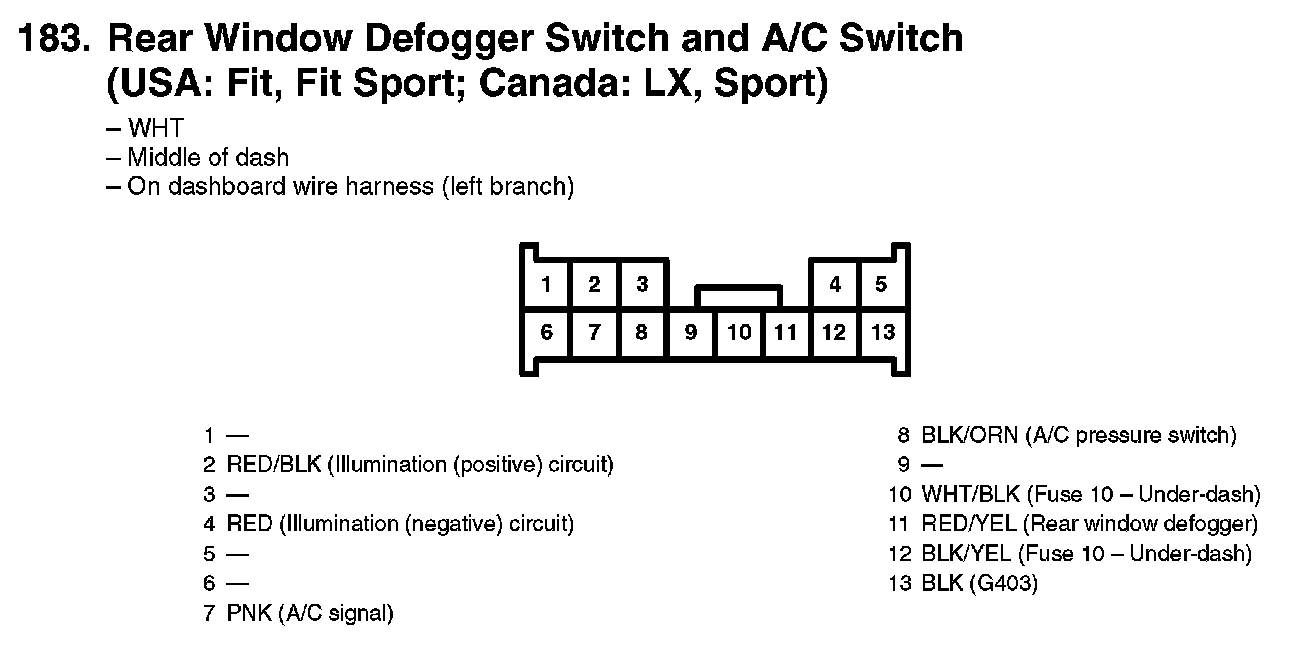

183. Rear Window Defogger Switch And A/C Switch (USA: Fit, Fit Sport; Canada: LX, Sport):
