Auxiliary Input / Output Jack, Entertainment System
Auxiliary Input / Output Jack, Entertainment System

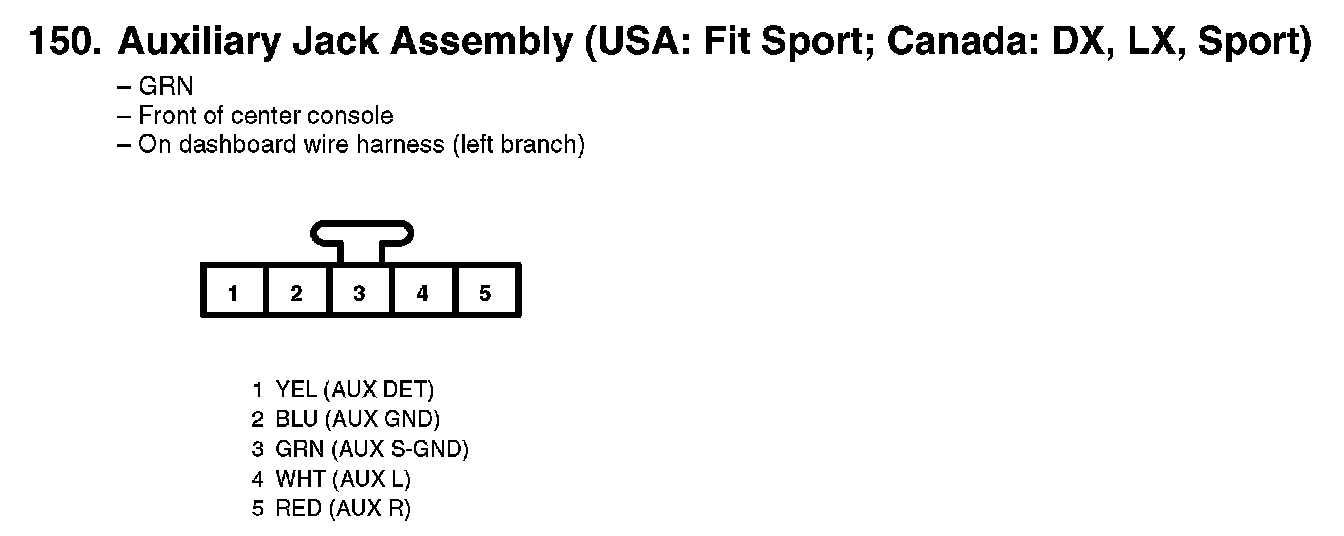

150. Auxiliary Jack Assembly (USA: Fit Sport; Canada: DX, LX, Sport):
