Clutch Switch, Cruise Control
Clutch Switch, Cruise Control

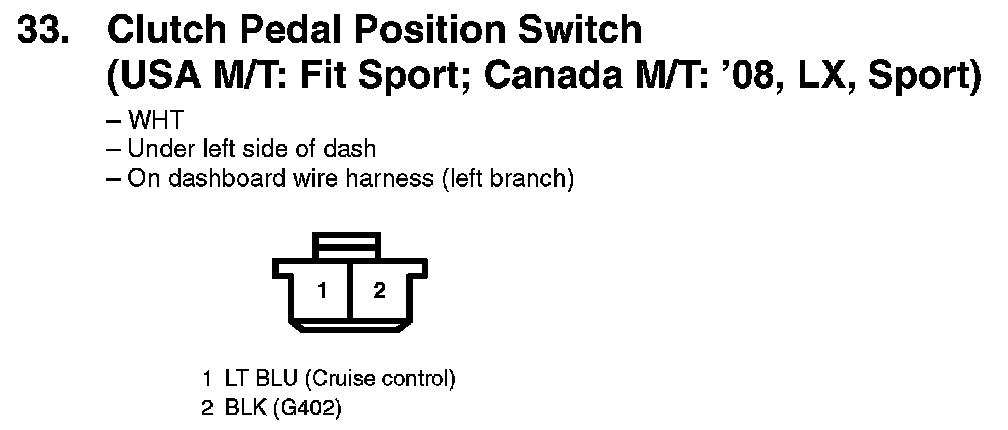

33. Clutch Pedal Position Switch (USA M/T: Fit Sport; Canada M/T: '08, LX, Sport):
