Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
2007
>>
Fit L4-1.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oxygen Sensor Relay
Oxygen Sensor Relay

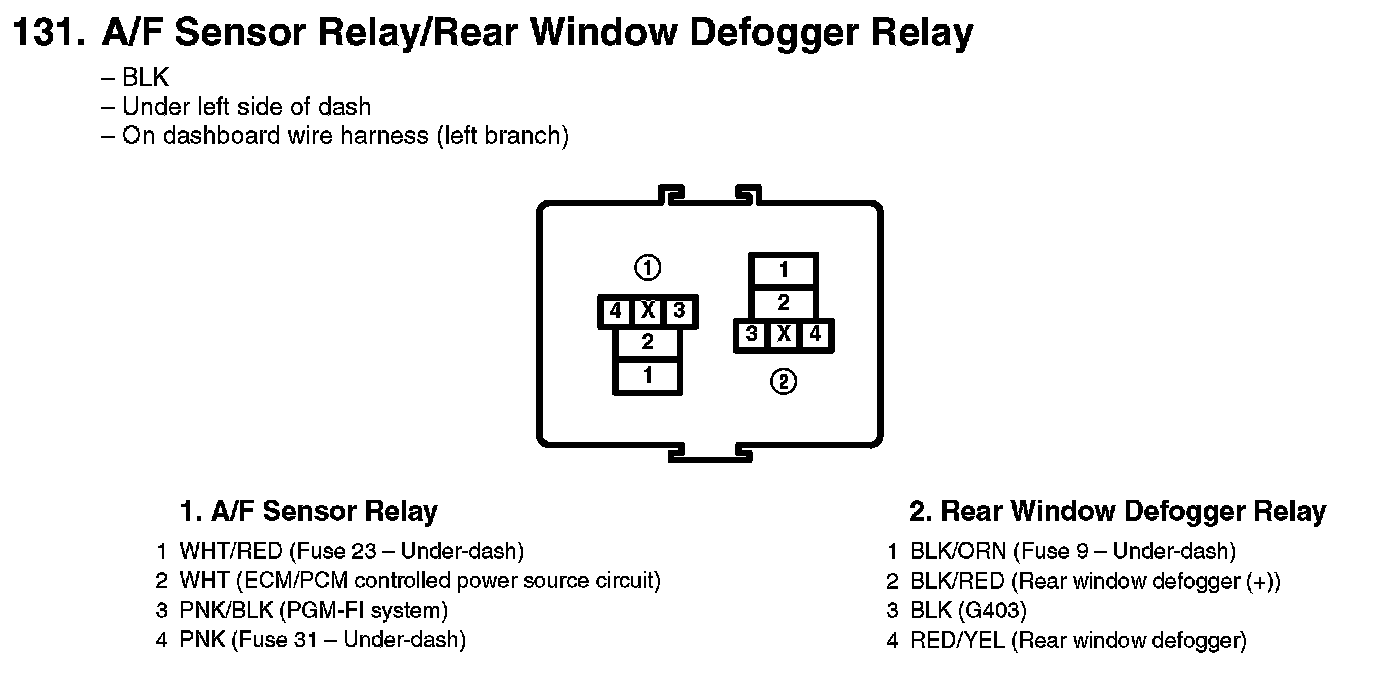

131. A/F Sensor Relay/Rear Window Defogger Relay:
