Seat Belt Tensioner
Seat Belt Tensioner
36. Driver's Lap Belt Tensioner:
46. Front Passenger's Lap Belt Tensioner:

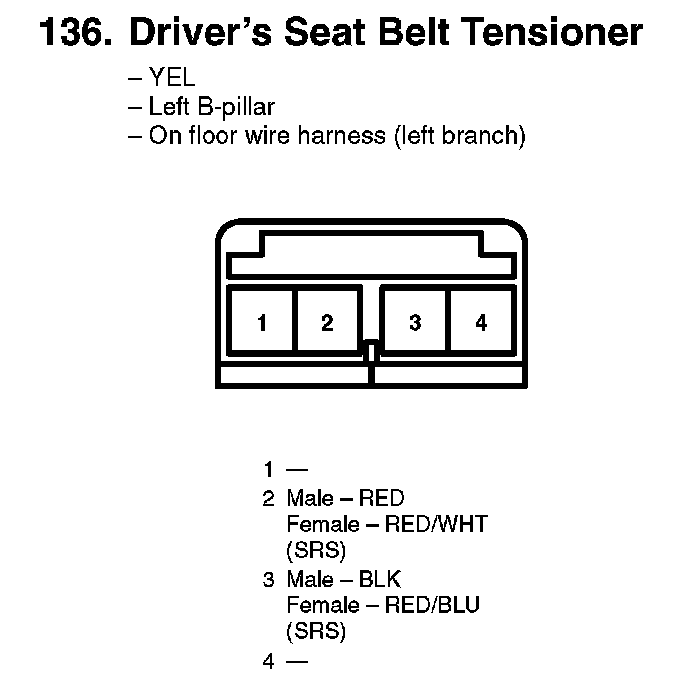

136. Driver's Seat Belt Tensioner:

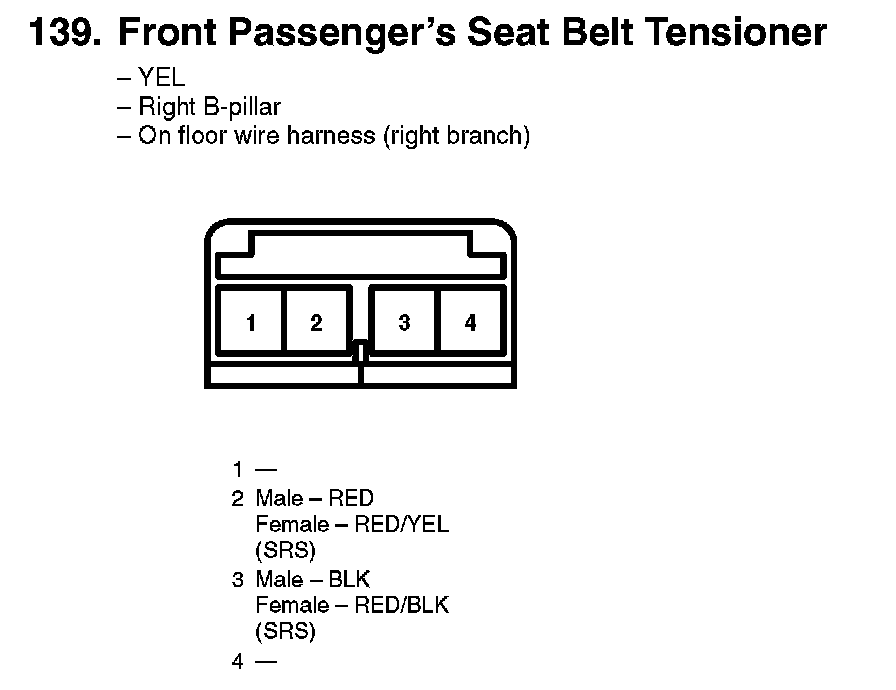

139. Front Passenger's Seat Belt Tensioner:
