Seat Occupant Sensor

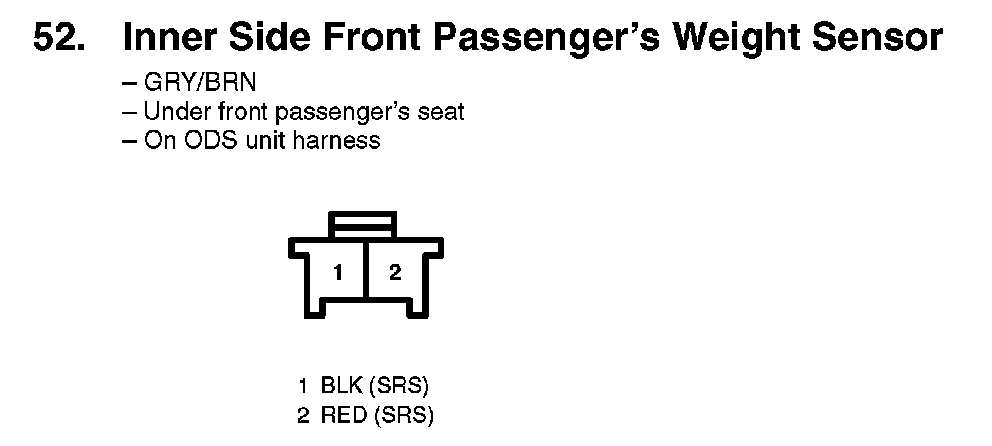

52. Inner Side Front Passenger's Weight Sensor:

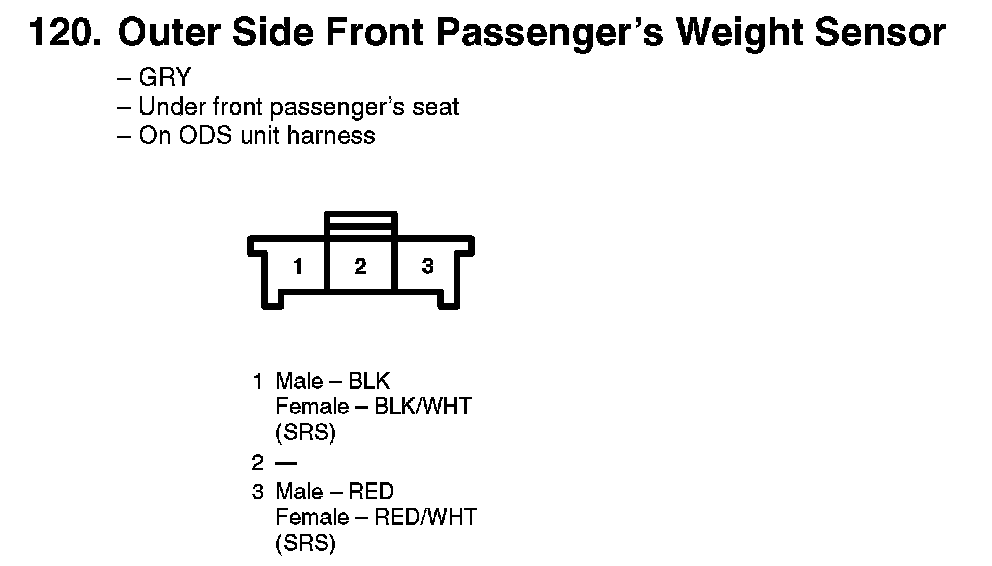

120. Outer Side Front Passenger's Weight Sensor:
