Shift Solenoid, A/T

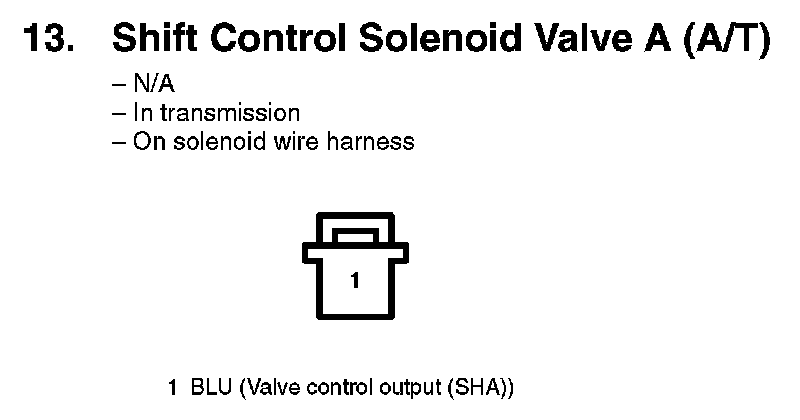

13. Shift Control Solenoid Valve A (A/T):



14. Shift Control Solenoid Valve B (A/T):

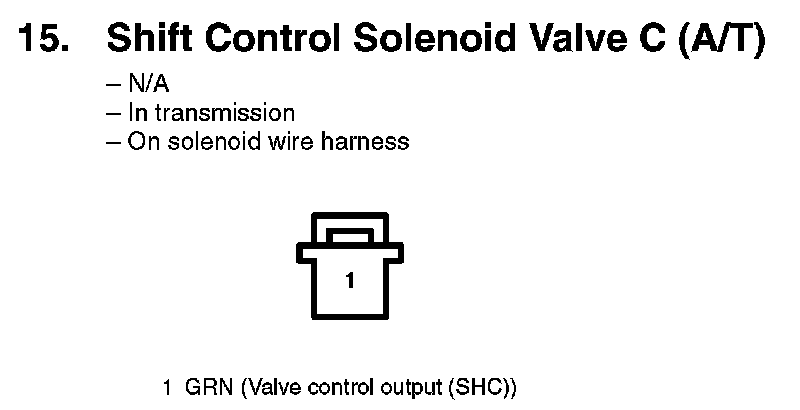

15. Shift Control Solenoid Valve C (A/T):



16. Shift Control Solenoid Valve D (A/T):
