Blower Motor Resistor: Testing and Inspection

Blower Resistor Test

1. Remove the dashboard.
2. Disconnect the 4P connector from the blower resistor.

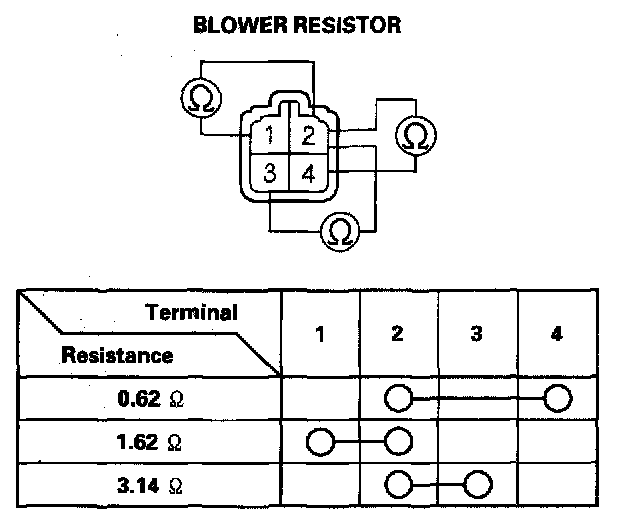

3. Measure the resistance between the following terminals of the blower resistor and compare them with the values in the table.
4. If the resistance is not within the specifications, replace the blower resistor.
