Home >> Honda >> 2007 >> Fit L4-1.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Locations

Control Assembly: Locations

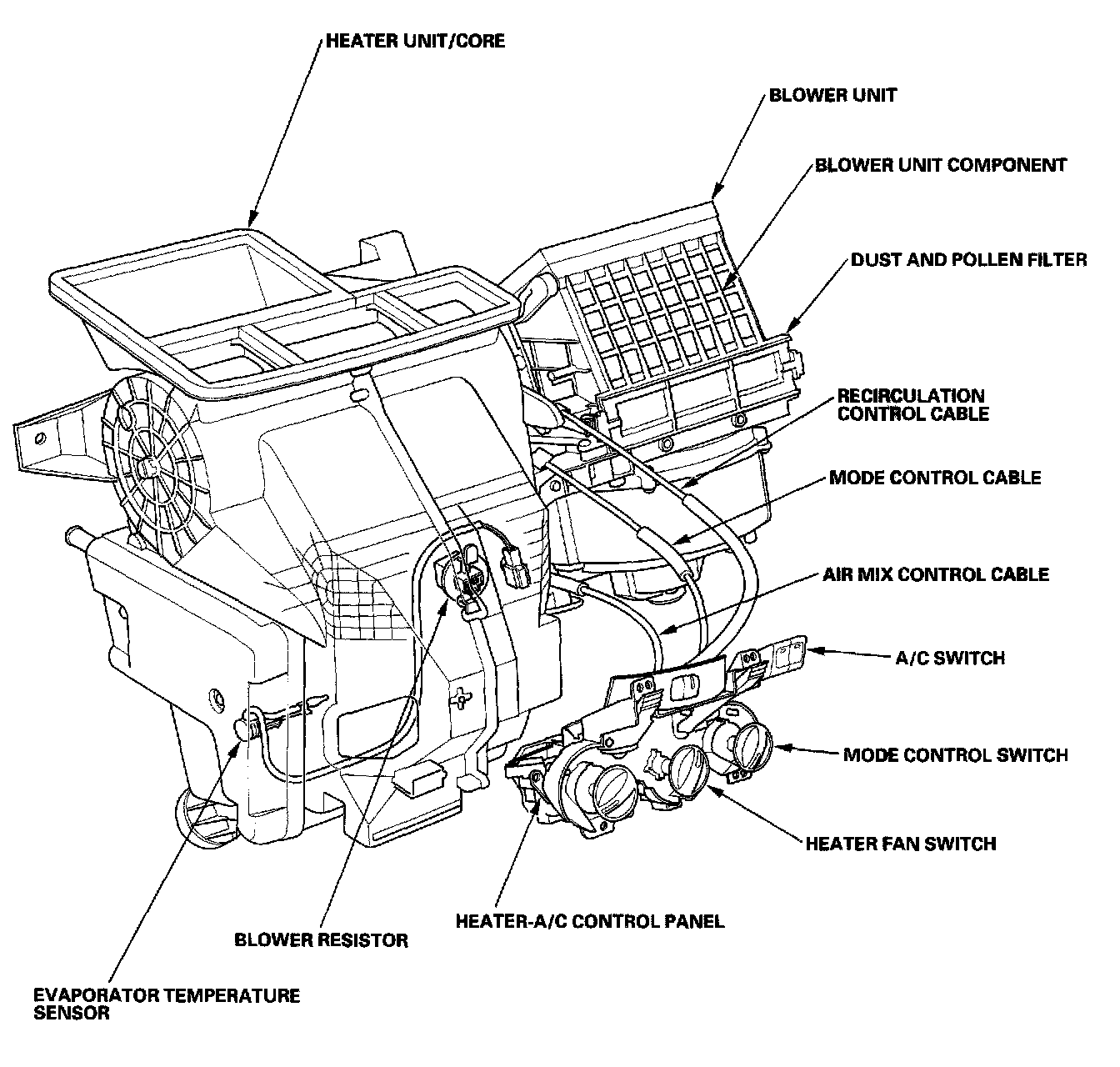

Heating/air Conditioning Component Location Index:
