Cargo Lamp: Service and Repair

Cargo Area Light Test/Replacement

1. Open the tailgate.

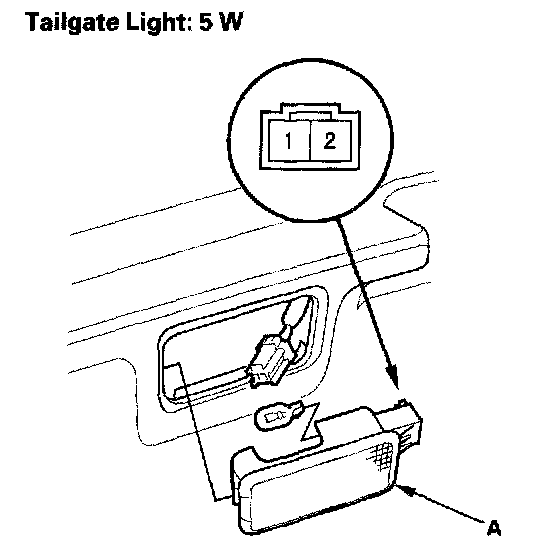

2. Carefully pry out the tailgate light (A).
3. Disconnect the 2P connector (B) from the light.
4. Check for continuity between the No. 1 (+) and No. 2 (-) terminals. There should be continuity. If there is no continuity, check the bulb. If the bulb is OK, replace the cargo area light assembly.
5. Install in the reverse order of removal.
