Ignition System: Locations

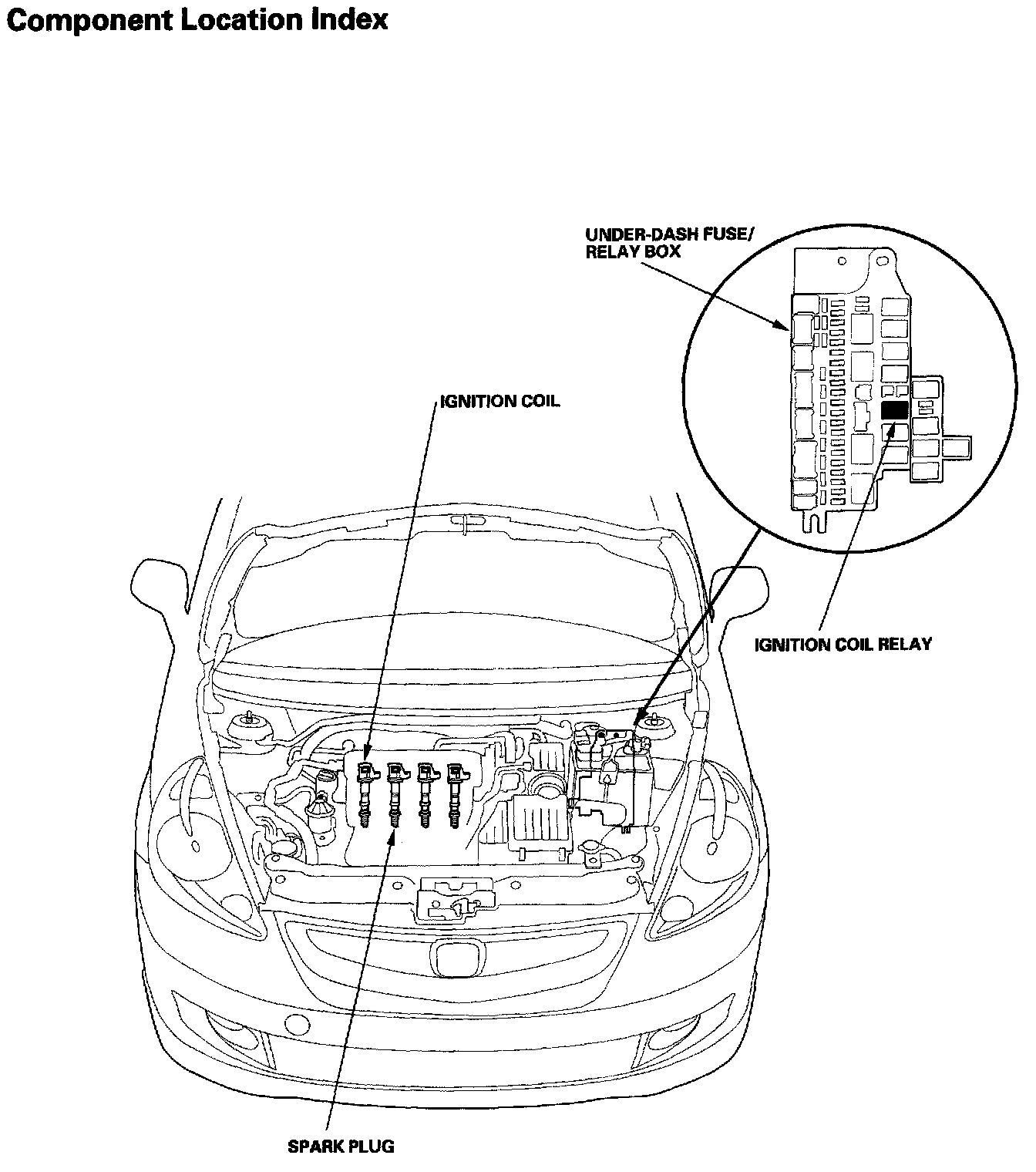

Ignition System Component Location Index:
Relay And Control Unit Locations Dashboard:

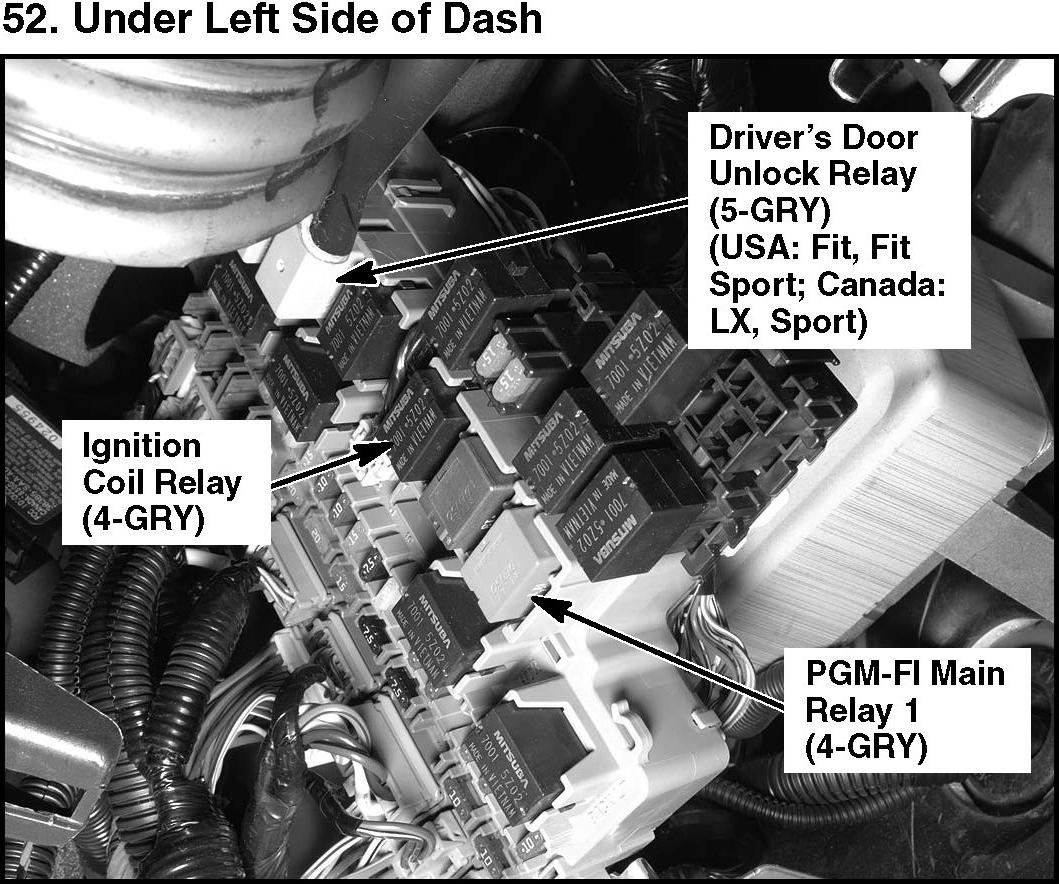

52. Under Left Side Of Dash:
