Steering: Description and Operation

System Description

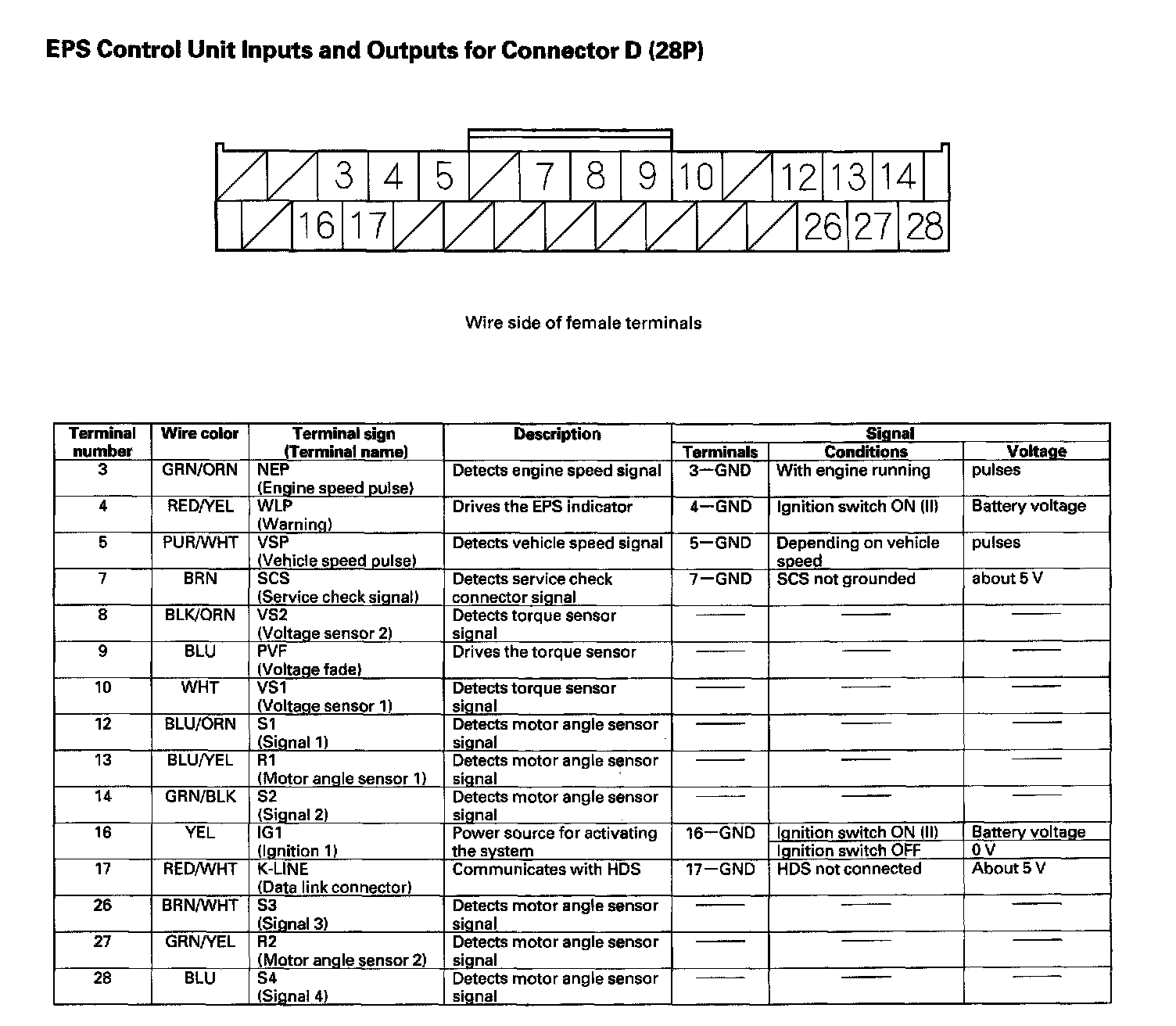

EPS Control Unit Inputs and Outputs (Part 1):

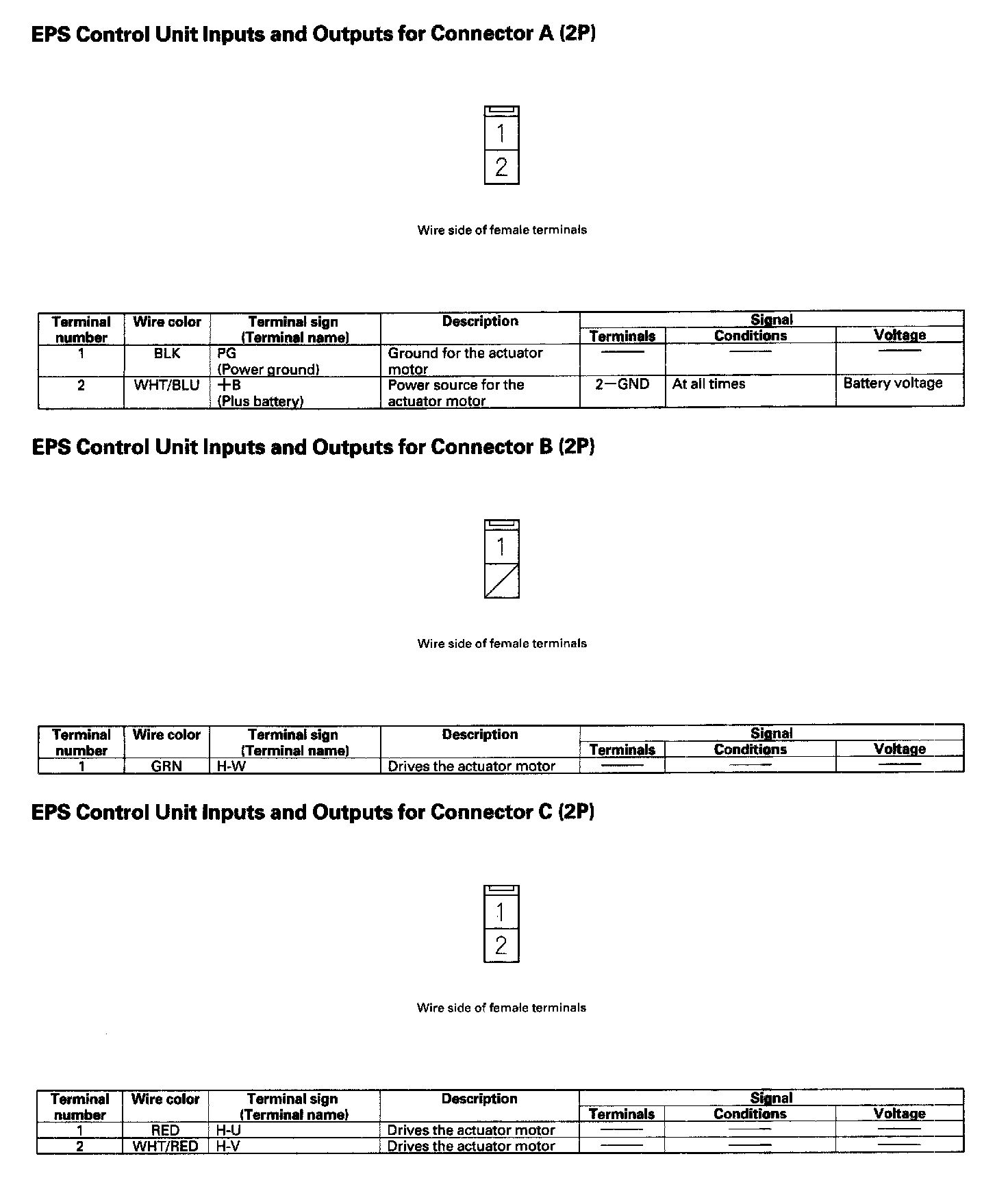

EPS Control Unit Inputs and Outputs (Part 2):
