Wipers/Washers - Windshield Wipers Chatter
07-018March 18, 2010
Applies To:
2007 Fit - ALL
Windshield Wipers Chatter
(Supersedes 07-018, dated May 4, 2007; see Revision Summary)
REVISION SUMMARY
This service bulletin has been revised extensively; American Honda recommends that you review the entire bulletin.
SYMPTOM
The windshield wiper blades chatter when used.
PROBABLE CAUSE
The wiper blade pressure against the windshield is weak.
CORRECTIVE ACTION
Replace the original rubber windshield front wiper blade assemblies with new plastic blade assemblies.
PARTS INFORMATION
Wiper Blade Set: P/N 76660-SLN-305
(Includes left and right blade assemblies.)
NOTE:
When replacing individual wiper blade assemblies or wiper inserts for the new plastic style blades, use the following part numbers.
Left Wiper Blade: P/N 76620-SLN-305
Left Wiper Insert: P/N 76622-SLN-A11
Right Wiper Blade: P/N 76630-SLN-305
Right Wiper Insert: P/N 76632-SEC-305
NOTE:
When replacing original rubber wiper blade parts, use the following part numbers.
Left Wiper Blade: P/N 76620-SLN-A01
Left Wiper Insert: P/N 76622-SLN-A01
Right Wiper Blade: P/N 76630-SLN-A01
Right Wiper Insert: P/N 76632-SEC-A11
WARRANTY CLAIM INFORMATION
The normal warranty applies.
Operation Number: 7401C8
Flat Rate Time: 0.2 hour
Failed Part: P/N 76620-SLN-A01
Defect Code: 03214
Symptom Code: 04209
Skill Level: Maintenance Technician
REPAIR PROCEDURE

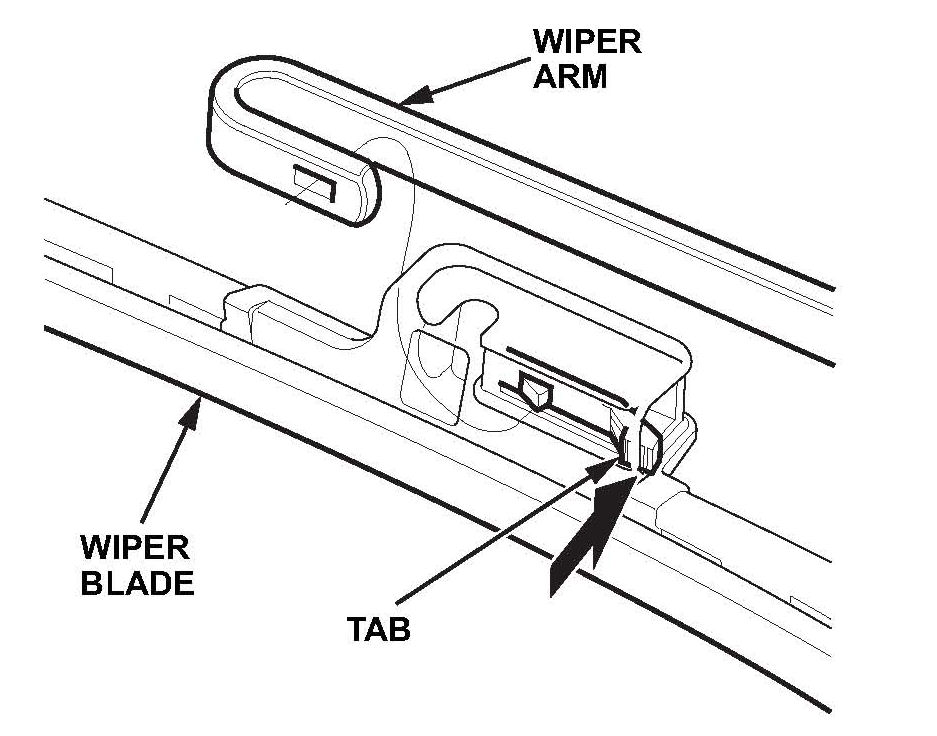

1. Pull up the wiper arms from the windshield.
2. Push the tab, and remove the original wiper blade assemblies from the wiper arms.
3. Install the new wiper blade assemblies.
