DTC List - Supplemental Restraint System

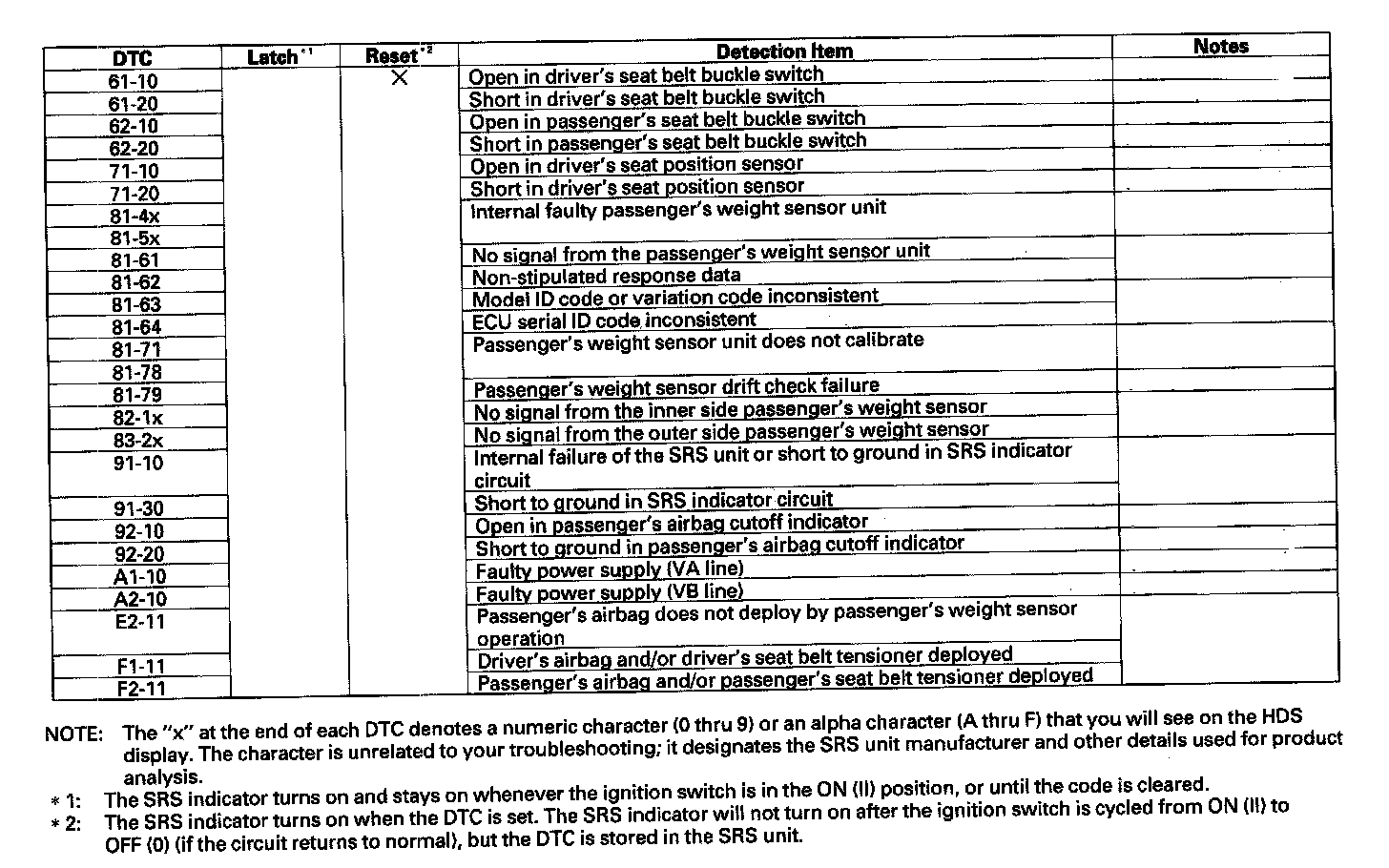

SRS DTC Troubleshooting Index

11-10 - 42-A2:

51-1x - 54-6x:

61-10 - F2-11:

81-4x - 82-2x:

when an OPDS sensor or seat weight sensor failure occurs, the DTC is stored by the SRS unit and the passenger's weight sensor unit. The passenger's weight sensor unit DTC is subcode of the SRS unit DTC.
