Radio, Stereo, and Compact Disc: Service and Repair

Audio Unit Removal/Installation

1. Make sure you have the anti-theft code for the audio system, then write down the audio presets,
2. Remove the radio panel.

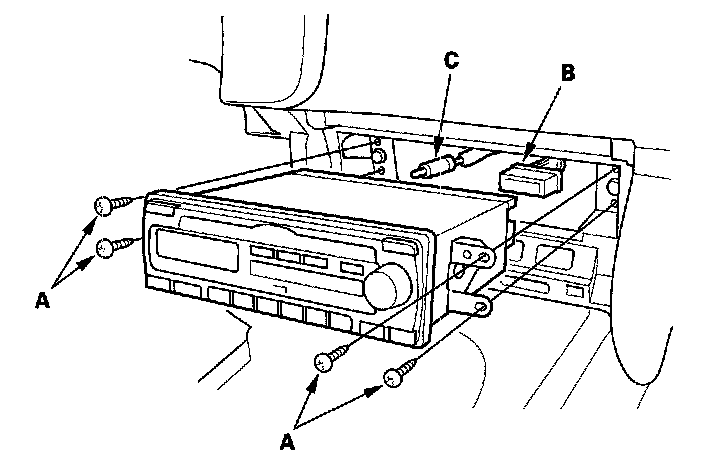

3. Remove the four mounting screws (A).
4. Disconnect the 20P connector (B) and AM/FM antenna lead (C) from the audio unit.
5. Install in the reverse order of removal.
6. Enter the anti-theft code for the audio system, then enter the audio presets.
