Cabin Ventilation Duct: Service and Repair

Rear Air Outlet Replacement

NOTE: Take care not to scratch the body.

1. Remove these items:
- Rear trim panel
- Rear bumper

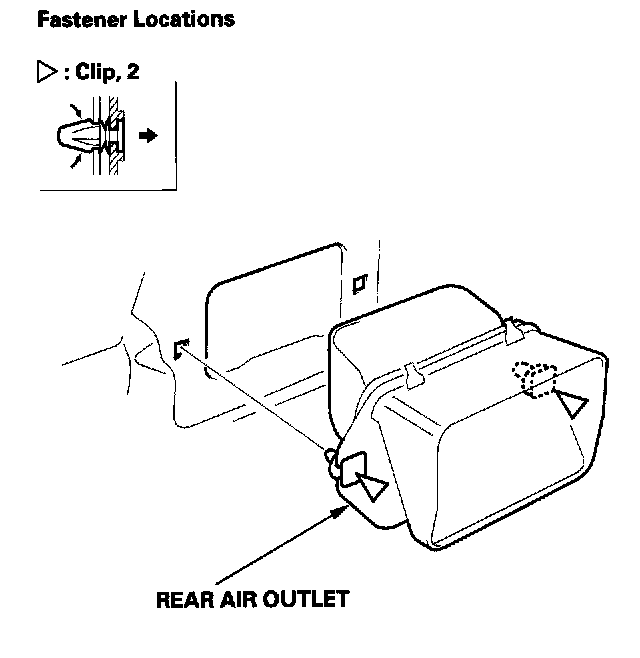

2. Remove the rear air outlet as shown.
3. Note these items when reinstalling the air outlet:
- Check for damaged or stress-whitened clips, and replace them with new ones.




- Push the clips into place securely.
