Pinout Values and Diagnostic Parameters

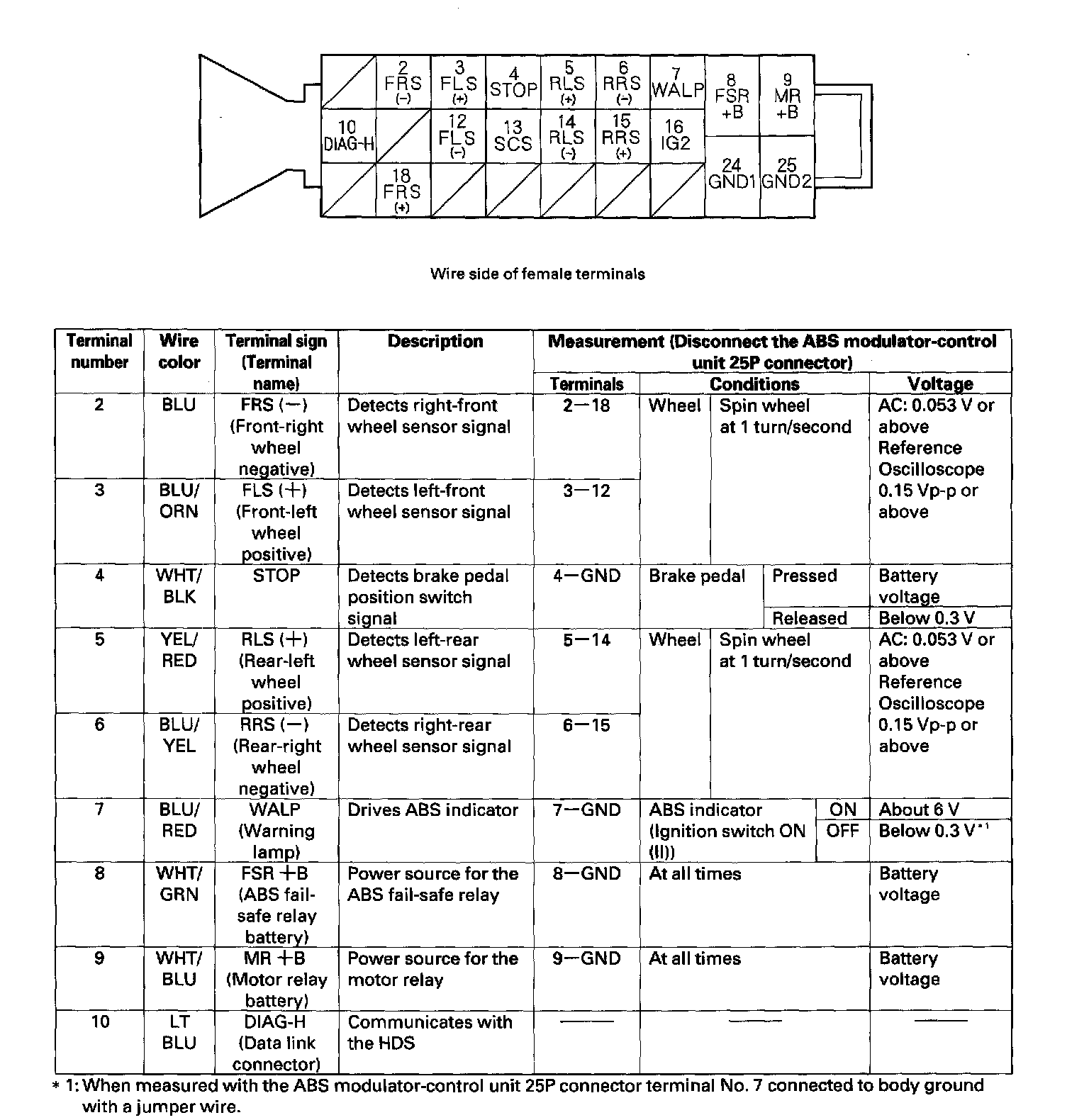

ABS Modulator-control Unit Inputs and Outputs for 25P Connector:

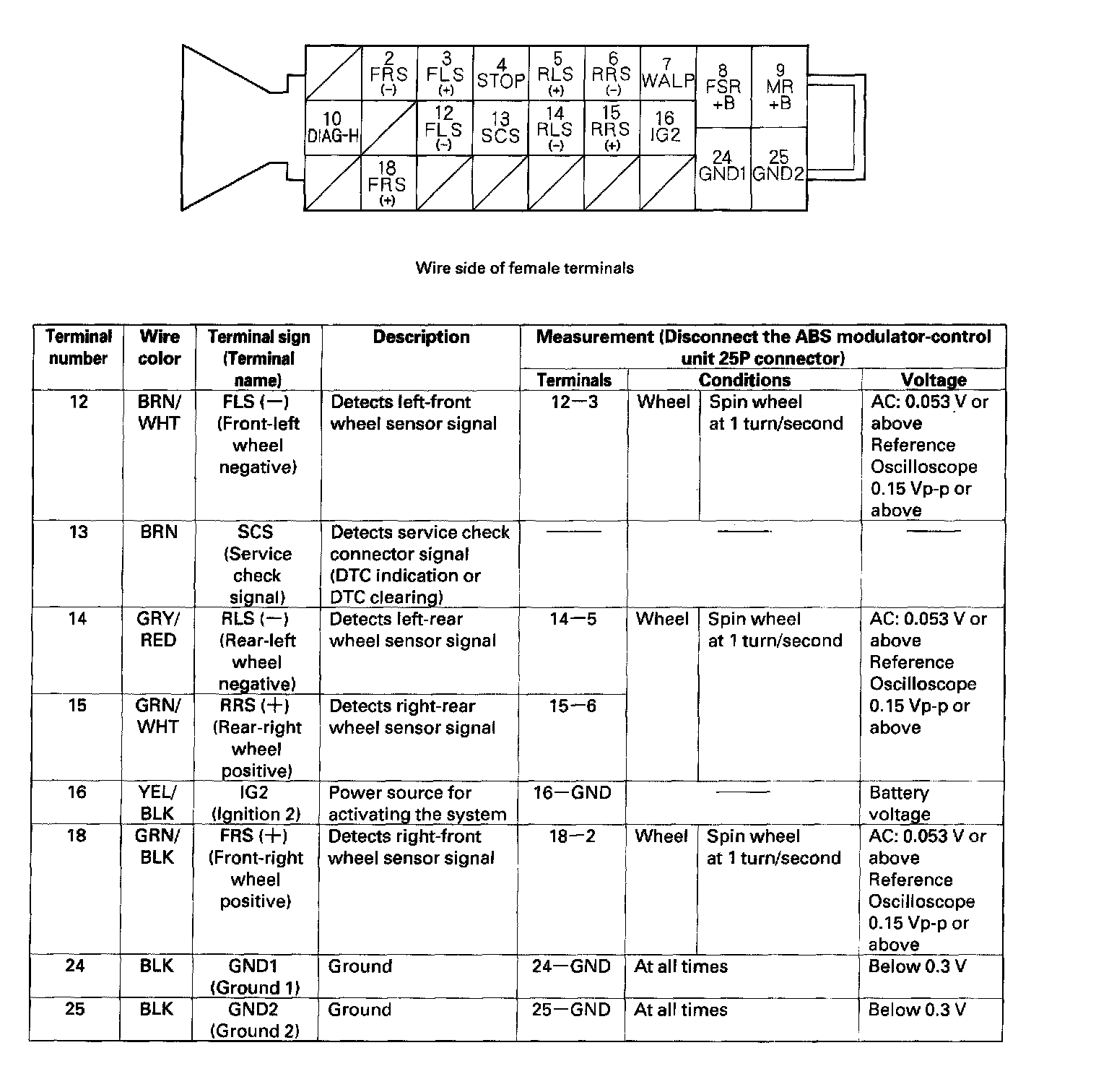

ABS Modulator-control Unit Inputs and Outputs for 25P Connector:
