Component Tests and General Diagnostics
Cruise Control Input Test2006-2007 Models
1. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC).
2. Turn the ignition switch ON (II).
3. Make sure the HDS communicates with the vehicle and the engine control module (ECM). If it does not, troubleshoot the DLC circuit.
4. Go to PGM-FI, and check for DTCs.

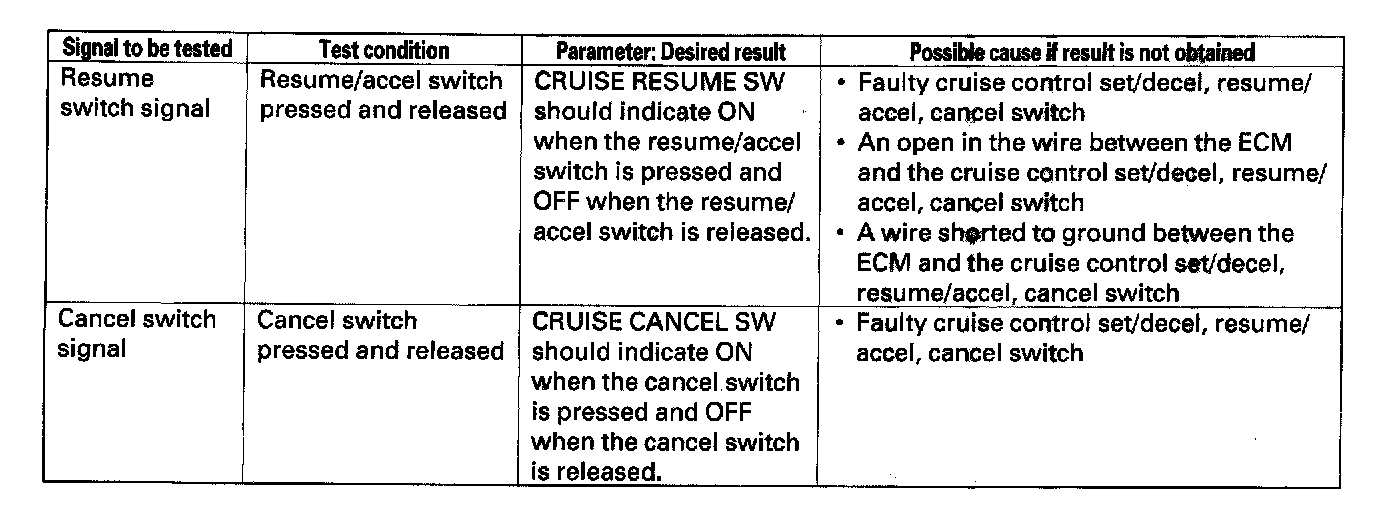

5. Do the mentioned tests while monitoring parameters in the PGM-FI DATA LIST with the HDS.
