Air Door Actuator / Motor, HVAC

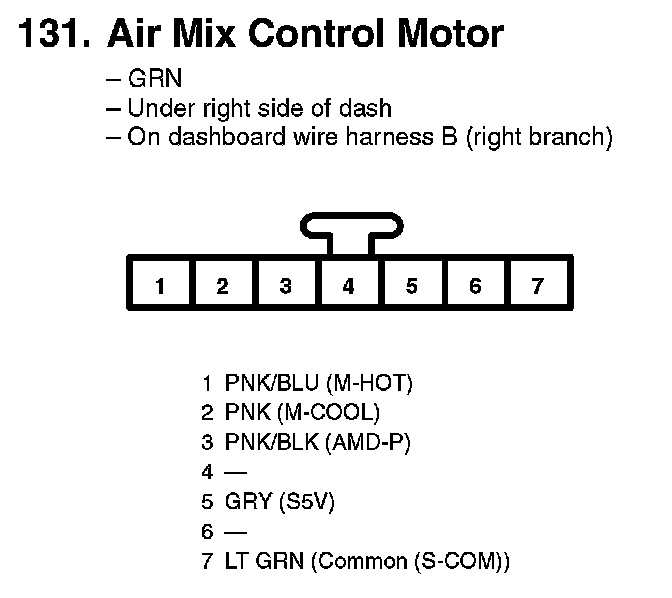

131. Air Mix Control Motor:

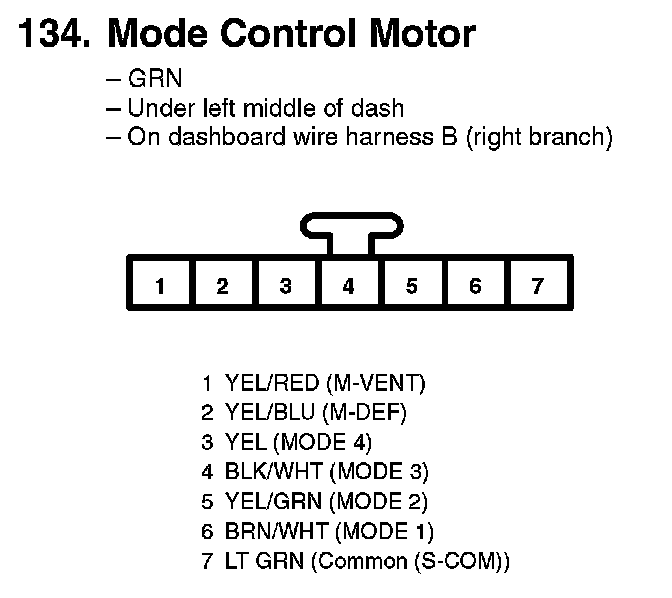

134. Mode Control Motor:

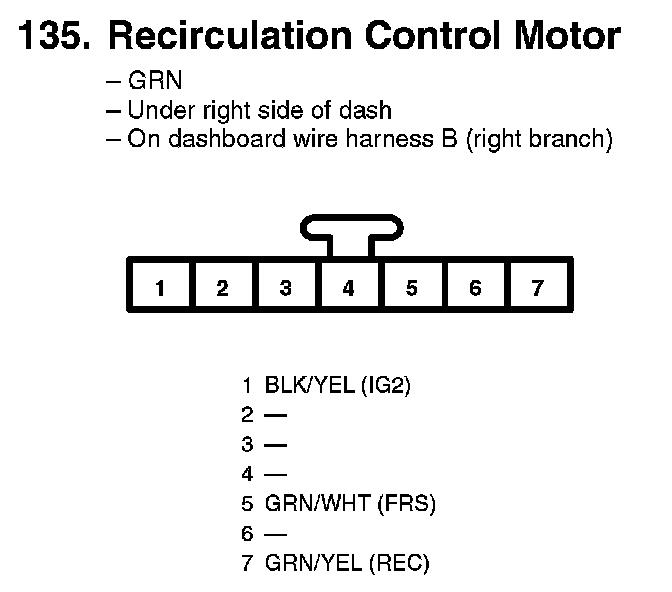

135. Recirculation Control Motor:
